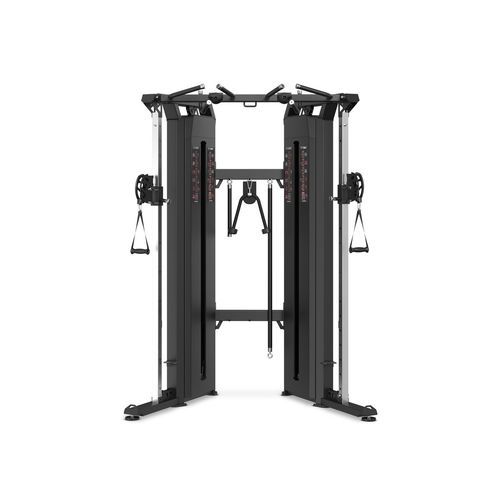

Dual-cable gym pulley PC2251

highlowwith pull-up bar

Overview
The PC2251 Adjustable Dual Pulley provides a versatile, smooth and professional training solution based on dual weight stacks with a 1/2:1 ratio, enabling faster movements and an extended range of motion. Independent pulley carriages, an intuitive exercise chart and multi-position pull-up bars with an assistance platform make the unit accessible to a wide range of users. Available with standard 2×80 kg stacks (optional 2×100 kg) and multiple accessory attachment points for functional training setups.

Key features

• High-strength Q235 steel structure
• Dual weight stacks with 1/2:1 resistance ratio to reduce inertia and allow high-speed training with greater range than 1:1 systems
• Covered weight towers restricting hand access to the selector area for improved safety
• Cable transmission system with high-quality transmission pulleys
• Magnetic weight selector for precise load changes
• Calibrated steel plates painted black with Teflon rings for smooth sliding and reduced friction noise
• Independent pulley carriages with quick adjustment for single or simultaneous exercises
• Anti-corrosive matte black polyester powder coating
• Industrial-grade bearings and high-quality hardware
• Instructional pictograms for correct exercise execution
• Multi-position pull-up bars with foot-assist stirrups to expand exercise options
• Upper central hook for resistance bands
• Accessory hooks compatible with multiple pulley grips
• Handles covered in vulcanized Thermoplastic TPV secured with aluminum collars
• Adjustable PVC-protected feet for improved stability
• Integrated side hook on the weight stack tower for accessory storage
• Machine biomechanics designed for accessibility across user profiles

Included accessories

• Pair of single handles
• Rubber-coated short handle
• Long bar handle with double attachment
• Ankle strap
• Braided rope handle

Dimensions & Weight

• Length: 108.9 cm
• Width: 168.2 cm
• Height: 235 cm
• Weight: 416 kg
• Plate weight: 2×100 kg standard described (option 2×100 kg available)
• Number of plates: 14 × 5 kg + 16 × 7.5 kg + shaft and top plate

Technical specifications

• Model reference: PC2251
• Series: PC22 line
• Usage level: Intensive (commercial/installation use)
• Resistance ratio: Dual stacks 1/2:1
• Transmission: Cable with high-quality pulleys
• Weight selector: Magnetic
• Plate composition: Calibrated steel plates with Teflon rings (black finish)
• Finish: Anti-corrosive matte black polyester powder coating
• Handles: Vulcanized Thermoplastic TPV with aluminum collars
• Pulley system: High-quality transmission pulleys for smooth, silent movement
• Bearings & hardware: Industrial grade
• Safety: Covered weight towers limiting hand access and instructional pictograms
• Accessories storage: Integrated side hook on weight stack tower
