Leg abduction gym station PC2315

leg adduction

Product overview

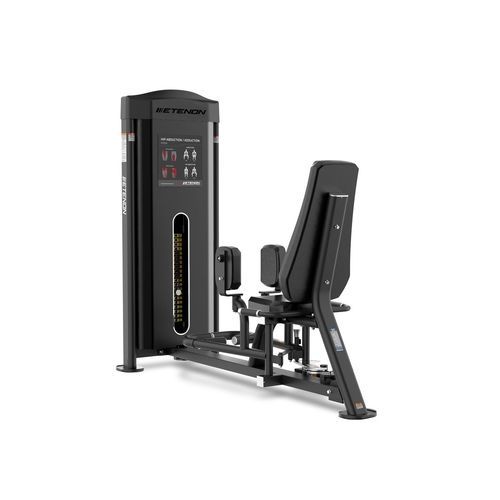

The PC2315 Etenon Abductor/Adductor machine provides dual-function training for hip abductors and adductors in a single compact unit. Quick switching between abductor and adductor modes optimizes floor space while offering versatile lower-body strength options. Adjustable leg supports and a biomechanically designed movement path deliver controlled, comfortable execution for a wide range of users and training levels. The integrated weight stack ensures safe, progressive resistance throughout each repetition.

Technical Specifications

• Structure: Q235 steel frame, 50 x 100 mm profile, 3 mm thickness for stability.
• Seat, backrest and pads: high-density PU and foam with antibacterial upholstery suitable for continuous use.
• Slightly inclined backrest for improved user comfort.
• Leg adjustment system with lower selection pin to set range of motion.
• Leg pads fitted with bearings at the base to enable both abductor and adductor movements.
• Transmission: robust cable-based system designed for prolonged, demanding use.
• Weight stack with protective cover to limit access to moving parts.
• Weight plates: calibrated steel with black finish and Teflon bushings for smooth travel.
• Integrated upper compartment for personal items or small accessories.
• Magnetic selector pin for fast, secure weight selection.
• Instructional placard for correct exercise execution.
• Handles coated in TPV and secured with aluminum collars.
• Mechanicals and fasteners selected to ensure reliable operation.
• Biomechanical design adapted to different user profiles.
• Foot support platform with non-slip coating for stability.
• Bases with non-slip PVC supports to improve floor grip.

Dimensions and Weight

• Length: 177 cm
• Width: 69 cm
• Height: 155 cm
• Weight: 177.5 kg
• Weight stack: 90 kg

Documentation & Product Details

• Product reference: PC2315
• Use: Dual abductor/adductor machine
• Material: Q235 steel frame, 50 x 100 mm profile, 3 mm thickness
• Upholstery: high-density PU and foam, antibacterial finish
• Transmission: robust cable system; magnetic selector pin; protective weight stack cover
• Overall dimensions and mass: 177 x 69 x 155 cm; 177.5 kg; weight stack 90 kg
