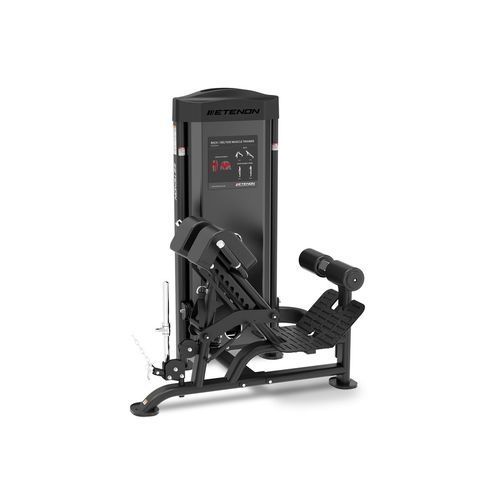

Hip thrust gym station PC23 series

Description
The Adjustable Hip Extension from the PC23 line provides a precise glute-focused workout through its biomechanical design and a Q235 steel frame that ensures stability during each repetition. Adjustable elements accommodate different users and promote safe, natural movement.

Technical Specifications

• Frame constructed from Q235 steel, 50 x 100 mm profile, 3 mm thickness for structural strength and stability.
• Hip support pads and hold-down roller made of high-density PU and foam with antibacterial upholstery for intensive use.
• Height-adjustable hip support pad to fit a wide range of user sizes.
• Cable transmission system designed for continuous commercial use.
• Fully enclosed weight stack tower protecting plates and restricting access to moving parts.
• Weight plates manufactured from calibrated steel with black finish and Teflon bushings for smooth movement.
• Load selection via magnetic selector pin for quick and secure adjustments.
• Two resistance bands positioned at each side of the weight stack to add progressive load throughout the range of motion.
• Integrated upper storage compartment for personal items or training accessories.
• Instructional exercise placard to guide correct execution.
• TPV-coated handles secured with aluminum collars for durability and grip comfort.
• Includes a straight bar attachment, a single-handle attachment, and a chain.
• Front-mounted hook and storage area for attachments.
• Mechanical components and hardware selected for reliable operation.
• Biomechanical design developed to accommodate diverse user profiles.
• Foot support platform with non-slip surface for improved stability and comfort.
• Bases equipped with non-slip PVC feet to enhance floor grip and stability.

Details and Weight

• Length: 125 cm
• Width: 109 cm
• Height: 155 cm
• Equipment weight: 235 kg
• Weight stack: 120 kg

Documentation
Technical data sheet (PDF) is available for this product.

Characteristics / Technical specifications

• Model: Adjustable Hip Extension (PC23 line)
• Frame: Q235 steel, 50 x 100 mm profile, 3 mm thickness
• Upholstery: High-density PU foam with antibacterial finish
• Adjustability: Height-adjustable hip support pad
• Resistance system: Cable transmission, calibrated steel weight plates, Teflon bushings, magnetic selector pin
• Additional resistance: Two side resistance bands for progressive load
• Accessories: Straight bar, single-handle, chain; front-mounted hook and storage
• Ergonomics: Biomechanical design, TPV-coated handles with aluminum collars, non-slip foot platform
• Protection & safety: Fully enclosed weight stack tower; non-slip PVC feet on bases
• Dimensions & mass: 125 x 109 x 155 cm; equipment weight 235 kg; weight stack 120 kg
