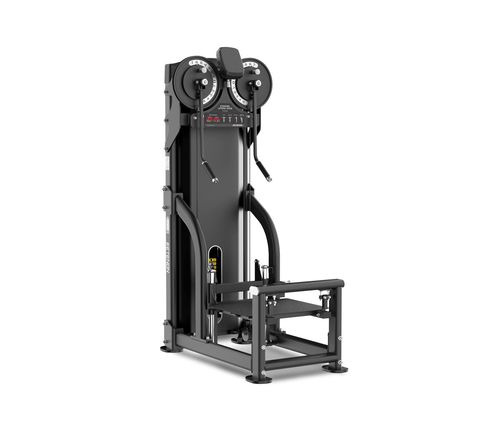

Shoulder raise gym station PC2345

pec deck butterfly

Overview
The Etenon Dual Standing Lateral Raises / Chest Fly combines two key shoulder and chest movements in a single station, enabling compact installation and efficient training workflows. The machine supports both lateral raises and chest fly motions without compromise on biomechanical alignment.

Usage and Ergonomics
The height-adjustable platform provides a stable, ergonomic working position for users of varied stature, promoting correct movement paths for both exercises. Adjustable arms and user-adjustable support distance ensure proper joint alignment and comfortable contact points during sets.

Key Features

• Frame: Q235 steel structure with 50 x 100 mm profile and 3 mm thickness for structural stability.
• Contact pads upholstered in high-density PU and foam with antibacterial finish suited for frequent use.
• Adjustable support distance to suit different body sizes.
• Adjustable arms to perform lateral raises and chest fly movements.
• Height-adjustable platform to adapt to multiple user profiles.
• Cable-based transmission system engineered for continuous commercial use.
• Shrouded weight stack to protect plates and limit access to moving parts.
• Calibrated steel plates with black finish and Teflon bushings for smooth travel.
• Integrated upper compartment for temporary storage of personal items or small accessories.
• Load selection via magnetic pin for fast, secure weight changes.
• Instructional placard showing correct exercise execution.
• TPV-coated handles secured with aluminum collars for consistent grip and durability.
• Selected mechanical components and hardware to ensure reliable operation.
• Biomechanical design to accommodate varied user profiles.
• Foot support base with non-slip coating and PVC non-slip base supports for improved floor grip.

Dimensions and Weight

• Length: 127 cm
• Width: 79 cm
• Height: 200 cm
• Machine weight: 312 kg
• Weight stack: 120 kg

Technical Specifications

• Product reference: PC2345
• Brand: Etenon
• Material: Q235 steel frame, 50 x 100 mm profile, 3 mm thickness
• Upholstery: high-density PU and foam with antibacterial finish
• Adjustability: support distance adjustable; adjustable arms for two exercise modes; height-adjustable platform
• Transmission: cable-based system designed for continuous use
• Weight system: shrouded calibrated steel plates with Teflon bushings; magnetic pin selector; total 120 kg
• Accessories: integrated upper compartment, instructional placard
• Handles: TPV coating with aluminum collars
• Safety and stability: shrouded weight stack, foot support with non-slip coating, PVC non-slip base supports
• Design intent: biomechanical layout to suit varied user profiles; focused on functionality and space efficiency
