Medical bin E16A

medicine distributionSPDCSSD

Product overview

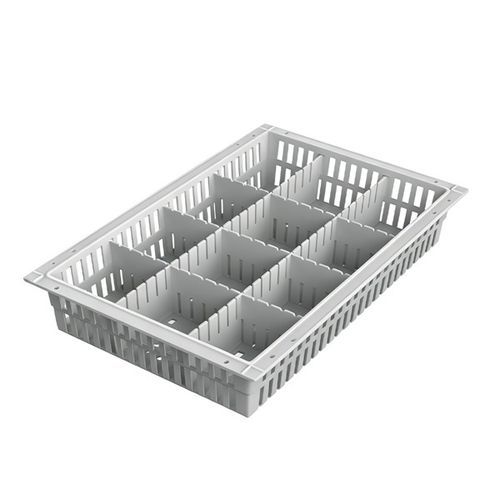

E16A ISO modular bin designed to ISO 600×400 mm module standard for precise hospital material management and standardized storage. External dimensions: 600×400×100 mm. Main material: virgin high-strength medical-grade ABS, non-toxic, wipeable and resistant to medical disinfectants. Bin structure: full-area multi-directional ventilation with through-holes on four sides and bottom. Partitioning: removable and freely adjustable dividers for customizable compartment layouts. Optional accessories: dual label-frame system (external sliding label frame + reversible internal label frame). Compatible equipment: ISO trolley systems, multi-tier racks, consumable cabinets, nursing worktops and material handling equipment. Manufacturing: high-precision one-piece injection molding with rounded edges, no burrs or sharp corners. Usage: can be used standalone or stacked to save storage space. Customization: divider quantity, bin colour, department logo and label text fully customizable.

Core advantages

• Manufactured to ISO 600×400 mm modular system with precise, uniform dimensions for strong compatibility.
• Full-area multi-directional ventilation: large, evenly distributed ventilation holes on sides and bottom to reduce humidity and prevent mould, maintaining dry and clean supplies in line with hospital infection control.
• Virgin medical-grade ABS, one-piece injection molded: no recycled material, no odors, environmentally safe, resists repeated wiping with alcohol and chlorine-based disinfectants without yellowing or cracking.
• Removable divider system with multiple preset slots enabling flexible reconfiguration for different compartment sizes.
• Optional dual label-frame system: external 58×90 mm sliding frame for quick information changes and internal 42×65 mm reversible frame for horizontal/vertical mounting to support inventory and fast retrieval.
• Supports standalone use and stable multi-level stacking; base features four 3 mm high rounded contact points suitable for placement on worktops or inside cabinets.
• Modular assembly compatibility allows combination with bins of different heights to build tiered storage systems for detailed inventory management.
• Precision one-piece molding with smooth rounded edges, no seams or burrs, easy to clean and suitable for cleanroom environments.
• Full customization options: divider count, fixed shelves, slot layout, bin colour, department logo and label printing to standardize department appearance.
• Manufacturer quality control across material selection, molding and appearance inspection ensures consistent durability for high-frequency hospital use.

Application scenarios
Widely used in core hospital areas: aseptic preparation centers, operating rooms, sterilization supply centers, pharmacy, laboratory, inpatient nursing units, outpatient treatment rooms and central supply warehouses. Can be placed on nursing worktops, material racks or enclosed consumable cabinets and used with ISO transfer trolleys for material flow; suitable for dressings, disposable consumables, small instruments, laboratory materials and auxiliary drug supplies.

Customization and manufacturing
Supports full-dimension customization: divider quantity, bin colour, department logo and label text. Manufactured using high-precision tooling for one-piece molding, tight structure without seams, rounded edges to protect staff, and easy cleaning and disinfection.

Features / specifications

• Model: E16A
• Standard: ISO 600×400 mm modular standard
• External dimensions: 600×400×100 mm
• Main material: virgin high-strength medical-grade ABS (non-toxic, disinfectant-resistant)
• Bin structure: full-area multi-directional ventilation (sides + bottom ventilation holes)
• Partitioning: removable adjustable dividers with multiple preset slots
• Optional accessories: external sliding label frame (58×90 mm), internal reversible label frame (42×65 mm)
• Compatible equipment: ISO modular trolleys, multi-tier racks, consumable cabinets, nursing worktops, material handling equipment
• Manufacturing process: high-precision one-piece injection molding, smooth rounded edges, no burrs
• Usage: standalone or multi-level stacking
• Customization: divider quantity, bin colour, department logo, label text
