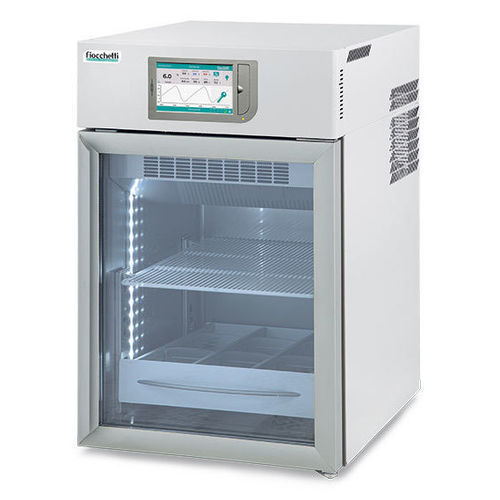

Pharmacy refrigerator MEDIKA 100 TOUCH

for vaccineshospitallaboratory

Short description
Small professional undercounter pharmacy/medical refrigerator for storage of drugs and vaccines, with tempered glass door, 7" full touchscreen and temperature/data recording. Certified as Medical Device Risk Class I. Suitable for pharmacies, hospital wards, clinics, dental and ophthalmology practices, laboratories and pharmaceutical industry.

Main features

• Tempered safety glass door according to IEC 61010-1; anti-fog and low-emissivity glass with anodized aluminium profiles.
• Full-length ergonomic handle; magnetic gasket on all sides; automatic return-spring lock; door stop at 90°; reversible opening side.
• Adjustable internal compartments and removable wire shelves for configurable storage.
• Full-height adjustable LED interior lighting.
• Professional ventilated refrigeration with automatic adaptive defrost and condensate vaporization.
• Night & Day energy consumption reduction function.

Quick product data

• Temperature range: +2 / +15 °C
• Commercial capacity (listed): 126 L (4.45 cu ft)
• Nominal capacity: 100 L (3.53 cu ft) — Net capacity: 96 L (3.40 cu ft)
• External dimensions (WxDxH): 52 x 63.5 x 81.5 cm
• Controller: TOUCH (7" full touch screen)

Structure and refrigeration
Inner dimensions: 44 x 51.6 x 42.1 cm
Insulation: injected PUF at 43 kg/m3 density, CFC‑free with water‑based injection; insulation thickness 40 mm.
Structure: monocoque, white plasticized atoxic steel interior/exterior with antibacterial film; optional inner 18/10 AISI 304 stainless steel; rounded inner corners; four adjustable feet H=1.5 cm.
Interior lighting: full LED along entire inner chamber, adjustable brightness.
Refrigeration: professional ventilated system; defrost: automatic adaptive with condensate vaporization.

Controller (7" FULL TOUCH SCREEN)
Microprocessor controller with 7" full touch interface, 0.1 °C resolution and ±0.3 °C accuracy.
Standard functions: temperature and alarm recording, multi‑trace real‑time graph, current temperature and editable set‑point, editable alarm limits, energy consumption and battery status (optional).
Ports and slots: SD card slot for data history, USB port for download/update, SIM slot for optional GSM module.
Connectivity and safety: integrated web server for LAN (RJ45), MODBUS TCP/IP support, anti‑freeze and anti‑overheating safety devices, dry contact for remote alarm.
Alarms: acoustic and visual alarms, muteable, with automatic recording.

Accessories available on request

• Electronic lock
• Power failure acoustic/visual alarm kit
• DMLP TOUCH independent recording module
• GSM and Wi‑Fi modules
• External terminal board
• Local monitoring system FIOCCHETTI LAN SUPERVISOR
• Gateway IOT
• 4‑20 mA converter module
• Shelves and pull‑out aluminium drawers (models 100‑140‑280)
• Plexiglass fronts for drawers
• Wheels kit (2 with brakes) and unidirectional rollers
• Internal power socket
• Access ports Ø35 mm with stopper / Ø15 mm
• Humidity sensor and PT100 probe (free contacts)
• Voltage options: 220V/1~/60Hz or 115V/1~/60Hz; voltage stabiliser
• Wooden crate packaging

Documents and downloads (available)
Technical drawings and data sheet available (sketch drawing and technical data sheet in PDF).

Technical characteristics / specifications

• Product family / series: MEDIKA® (pharmacy refrigerators for drugs and vaccines)
• Model: MEDIKA 100 TOUCH — Code: MED0102
• Temperature range: +2 / +15 °C
• Nominal capacity: 100 L — Net capacity: 96 L — Commercial capacity: 126 L (4.45 cu ft)
• External dims (WxDxH): 52 x 63.5 x 81.5 cm — Inner dims: 44 x 51.6 x 42.1 cm
• Insulation: PUF injected 43 kg/m3, thickness 40 mm
• Door: tempered safety glass IEC 61010-1, anti‑fog, low emissivity, aluminium frame, magnetic gasket, reversible opening
• Lighting: full LED adjustable
• Refrigerant: R290 — Energy consumption: 0.5 kWh/24h
• Power absorption: 0.14 kW / 0.9 A — Inrush current: 2.5 A
• Noise level: <40 dBA — Heat rejection EN 12900: 20 W
• Shelves max: 2 (40 x 47 cm) — Drawers max: 3
• Additional functions: Night & Day energy saving, anti‑freeze and anti‑overheating protection, dry contact for remote alarm
