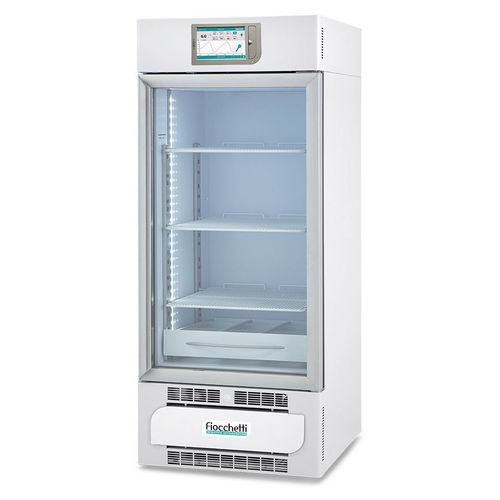

Pharmacy refrigerator MEDIKA 200 TOUCH

laboratoryhospitalfor vaccines

Overview
Professional medium-size refrigerator designed for storage of medicines and vaccines, equipped with a 7" full touchscreen controller, glazed door and temperature logging system. Classified as a Class I medical device. Intended for pharmacies, hospitals, clinics, laboratories and pharmaceutical industry.

Product summary
The MEDIKA® series features a functional design with low-emissivity tempered glass door with anti-fog treatment on an aluminium frame, full-length ergonomic handles, magnetic gasket on all sides, self-closing below 90° and reversible opening direction. Night & Day function reduces energy consumption.

Key information (at a glance)

• Temperature range: +2 / +15°C
• Capacity: 221 L (7.80 cu ft)
• External dimensions (W x D x H): 60 x 66 x 146 cm
• Electronic controller: TOUCH (full touchscreen)

Structure and refrigeration
Insulation: high-density foamed polyurethane (43 kg/m3) without CFCs, eco-friendly water injection. Insulation thickness: 70 mm at the rear / 50 mm on the sides. Interior/exterior finish: antibacterial white coated sheet or AISI 304 18/10 stainless steel interior; rounded interior corners; basin base designed to prevent leaks. Four unidirectional castors H=1.5 cm and two front feet for stability. Internal lighting: full-height LED with adjustable intensity. Cooling type: professional forced-air refrigeration. Defrost: adaptive with condensate evaporation. Energy reduction: Night & Day function.

Electronic controller (FULL TOUCH SCREEN 7")
Microprocessor controller with 7" full touch screen displaying key parameters: 0.1°C resolution, ±0.3°C accuracy. Standard temperature recording and alarms; multi-trace real-time graph, current temperature and setpoint adjustable, configurable alarm limits, energy consumption and battery status (option). Slots and ports: SD card slot (history), USB port (download and update), SIM slot (optional GSM module). Connectivity: built-in web server for LAN (RJ45) and MODBUS TCP/IP. Safety devices: anti-freeze, overheat protection and dry contact for remote alarm transmission. Optional accessories: electronic lock, audible/visual power-failure alarm, DMLP TOUCH independent temperature recorder, GSM and Wi‑Fi modules, external terminal block, integration with local and cloud monitoring systems. Audible and visual alarms adjustable, with automatic logging.

Available accessories (on request)

• IoT Gateway
• FIOCCHETTI LAN SUPERVISOR monitoring system
• Power-failure alarm
• External terminal block for ECT-F TOUCH
• Electronic lock
• DMLP TOUCH Digital Monitor
• Temperature simulation probe
• DIN 13277 compliance (for ECT-F TOUCH)
• GSM module
• Wi‑Fi module
• 4-20 mA module
• Shelf for models 170-200-250-400
• Steel shelf for models 170-200-250-400
• Perforated steel shelf for models 170-200-250-400
• Wire rack 14 x 42 x 15 cm (max. 3 per shelf)
• Aluminium drawer with adjustable dividers for models 170-200-250-400
• Aluminium drawer without dividers for models 170-200-250-400
• Plexiglass back panel for drawer
• Extractable stainless steel wire drawer for models 170-200-250-400
• Drawer with lock for narcotics
• Wheel kit (2 with brakes) for models 170-200-250-400
• Internal power outlet
• Cable pass-through hole Ø 35 mm / Ø 15 mm
• Humidity probe
• PT100 probe
• Power supply 220V/1~/60Hz or 115V/1~/60Hz
• Voltage stabilizer
• Wooden crate

Technical specifications

• Refrigerant type: R290
• Consumption: 0.6 kWh/24h
• Absorbed power: 0.17 kW (Amp 1)
• Starting current: 3 A
• Noise level: <45 dBA
• Heat output EN 12900: W 25
• Maximum number of shelves: 5 (shelf dimensions: 46 x 45 cm)
• Maximum number of drawers: 8 (internal drawer dimensions with dividers (W x D x H): 11.8 x 40 x 7.5 cm per module (3 spaces))
• Internal drawer dimensions without dividers (W x D x H): 39 x 40 x 7.5 cm
• Maximum number of wire drawers: 8 (wire drawer dimensions: 43.5 x 40.5 x 6.2 cm)
