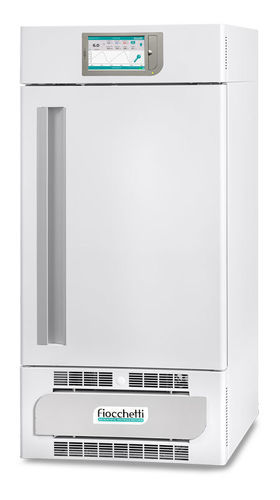

Laboratory refrigerator LABOR 170 TOUCH

hospitalfor pharmaciescabinet

Summary
Small professional refrigerator with solid door and temperature recording. The refrigerator is certified as a Class I medical device.

Applications and series
The LABOR series refrigerators feature a refined and functional design, with a solid door and adjustable compartments to optimize storage of materials. Designed for use in laboratories, hospitals and the pharmaceutical industry, LABOR refrigerators comply with international standards and offer several capacities and internal configuration options.

Door and ergonomics
The solid door is thermo-insulating; the ergonomic aluminium handle ensures a secure grip. The gasket is magnetic on all sides, automatic return below 90° opening and reversible door opening direction.

Main features

• Temperature range: +2 / +15 °C
• Net capacity: 179 L (6.32 cu ft)
• External dimensions (W x D x H): 52 x 63.5 x 94 cm
• Controller: TOUCH (Full touch screen)

Structure and refrigeration

• Internal dimensions: 50 x 48.5 x 73 cm
• Nominal capacity: 170 L (6.00 cu ft)
• Net capacity: 179 L (6.32 cu ft)
• Insulation type: high-density foamed polyurethane (43 kg/m3), CFC-free, ecological water-blown injection
• Insulation thickness: 70 mm at back / 50 mm at sides
• Structure: white plastic-coated sheet, anti-bacterial internal and external or internal AISI 304 18/10 stainless steel; rounded internal corners; basin designed to prevent leaks
• Mobility and stability: 4 unidirectional castors and two front feet for maximum stability
• Internal lighting: LED along the full height of the compartment
• Refrigeration type: professional forced-air
• Defrost type: adaptive with evaporation of condensed water

Electronic controller (7" touchscreen)
Microprocessor controller with FULL TOUCH SCREEN 7" interface displaying all vital refrigerator values, 0.1 °C resolution and ±0.3 °C accuracy. Temperature recording and alarms standard; simultaneous display of a multi-trace real-time graph, current temperature and setpoint (adjustable), alarm limits (adjustable), energy consumption and battery status (optional).
Ports and slots: SD card slot (data history), USB port for downloads and system updates, SIM card slot (GSM module optional).
Connectivity and communication: integrated web server for LAN network connection (RJ45) and MODBUS TCP/IP; dry contact for remote alarm transmission.
Safety functions: antifreeze and overheat protection, audible and visual alarms (adjustable, silent mode available) and automatic event logging.
Optional accessories and modules that can be installed: electronic lock, battery alarm (audible/visual) in case of power failure, DMLP TOUCH module for independent temperature logging, GSM and Wi‑Fi modules, external terminal block and possible integration with local and cloud monitoring systems.

Accessories available (on request)

• Gateway IOT
• FIOCCHETTI LAN SUPERVISOR monitoring system
• Power failure alarm
• External terminal block for ECT‑F TOUCH
• Electronic lock
• DMLP TOUCH DIGITAL MONITOR
• Probe for temperature simulation
• DIN 13277 compliance (for ECT‑F TOUCH)
• GSM module
• Wi‑Fi module
• 4‑20 mA module
• Shelves for mod. 170‑200‑250‑400
• Steel shelves for mod. 170‑200‑250‑400
• Perforated steel shelves for mod. 170‑200‑250‑400
• Wire rack 14 x 42 x 15 cm (max. 3 per shelf)
• Aluminium drawer with adjustable dividers for mod. 170‑200‑250‑400
• Aluminium drawer without dividers for models 170‑200‑250‑400
• Plexiglass backrest for drawer
• Extractable stainless steel wire drawer for models 170‑200‑250‑400
• Drawer with lock for narcotics
• Wheel kit (2 with brakes) for mod. 170‑200‑250‑400
• Internal power outlet
• Cable pass-through hole with 35 mm plug
• Cable pass-through hole 15 mm
• Humidity probe
• PT100 probe
• Power supply 220V/1~/60Hz
• Power supply 115V/1~/60Hz
• Voltage stabilizer
• Wooden crate

Characteristics / technical specifications

• Refrigerant type: R290
• Consumption: 0.5 kWh/24h
• Power absorbed: 0.17 kW (Current 1 A)
• Starting current: 3 A
• Sound level: <45 dBA
• Heat dissipation EN 12900: 20 W
• Maximum number of shelves: 4
• Shelf dimensions: 46 x 45 cm
• Maximum number of drawers: 6
• Internal drawer dimensions with dividers (W x D x H): 11.8 x 40 x 7.5 cm (e.g. 3)
• Internal drawer dimensions without dividers (W x D x H): 39 x 40 x 7.5 cm
• Maximum number of wire drawers: 6
• Wire drawer dimensions (W x D x H): 43.5 x 40.5 x 6.2 cm
