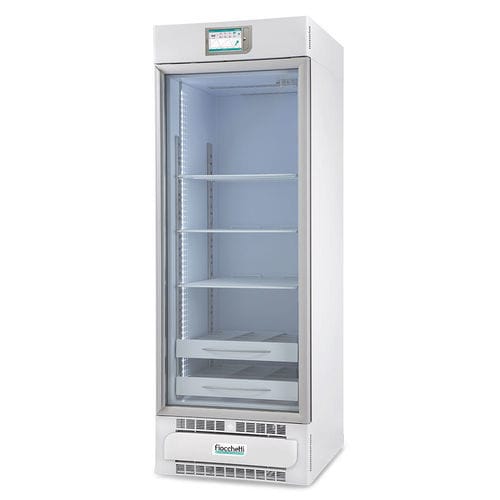

Pharmacy refrigerator MEDIKA 500 TOUCH

cabinet1-doorwith glass door

Product summary
Upright professional medical refrigerator with glass door and temperature recording, certified as a Class I medical device. Integrated touchscreen controller and modular internal compartments for storage of medicines and vaccines.

Applications

• Pharmacies
• Hospitals
• Medical, aesthetic, dental and ophthalmology clinics
• Laboratories
• Pharmaceutical industry

Main features
Temperature range: +2 / +15°C
Net capacity: 527 L (18.61 cu ft)
Nominal capacity: 500 L (17.65 cu ft)
External dimensions (W×D×H): 72 × 76 × 208 cm
Controller: TOUCH (touchscreen interface)

Structure and refrigeration
Internal dimensions: 60 × 58 × 150 cm
Insulation type: high-density foamed polyurethane (43 kg/m3), CFC-free, ecological water-based injection
Insulation thickness: 75 mm (rear) / 60 mm (sides)
Construction: white antibacterial coated sheet metal inside and out; internal AISI 304 18/10 stainless steel option. Rounded internal corners, drain pan designed to prevent leaks.
Mobility/stability: 4 fixed-direction castors + 2 front feet
Internal lighting: full-height LEDs with intensity adjustment
Refrigeration type: professional forced-air
Defrost type: adaptive with condensate evaporation
Energy saving: Night & Day function

Electronic controller (7" touchscreen)
FULL TOUCH SCREEN 7" interface displaying all vital refrigerator parameters
Resolution: 0.1°C; Accuracy: ±0.3°C
Standard temperature logging and alarms; multi-trace real-time graph showing current temperature and setpoint, adjustable alarm limits, energy consumption and battery status (optional)
Slots/ports: SD card slot (history), USB port (download/update), SIM card slot (GSM module optional)
Connectivity: built-in web server for LAN (RJ45), MODBUS TCP/IP
Safety functions: anti-freeze, overheat protection, dry contact for remote alarm transmission
Optional accessories for logging and monitoring: electronic lock, audible/visual power-failure alarm, independent DMLP TOUCH recorder, GSM/Wi‑Fi modules, external terminal block, integration with local and cloud monitoring systems

Accessories / options available on request

• IOT Gateway
• FIOCCHETTI LAN SUPERVISOR monitoring system
• Power-failure alarm
• External terminal block for ECT-F TOUCH
• Electronic lock
• DMLP TOUCH DIGITAL MONITOR
• Probe for temperature simulation
• DIN 13277 compliance (for ECT-F TOUCH)
• GSM MODULE
• WI-FI MODULE
• 4-20mA module
• Shelf for model 500
• Wire rack 14 × 50 × 15 cm (max. 3 per shelf)
• Aluminium drawer with adjustable dividers for mod. 500
• Aluminium drawer without dividers for model 500
• Drawer with lock for narcotics
• Plexiglass back panel for drawer
• Wheel kit (2 with brakes) for mod. 500
• Internal power outlet
• CABLE PASS-THROUGH with 35 mm plug
• Cable pass-through hole 15 mm
• Humidity probe
• PT100 probe
• Power supply 220V/1~/60Hz
• Power supply 115V/1~/60Hz
• Voltage stabilizer
• Wooden crate

Technical characteristics / specifications

• Refrigerant gas: R290
• Consumption: 1 kWh/24h
• Power absorbed: 0.17 kW (Amp 1)
• Starting current: Amp 3
• Noise level: <45 dBA
• Heat emission (EN 12900): 40 W
• Max no. of shelves: 7
• Shelf dimensions: 56 × 55 cm
• Max no. of drawers: 14
• Internal drawer dimensions with dividers (W×D×H) (x no. of spaces): 15 × 50 × 7.5 cm (3)
• Internal drawer dimensions without dividers (W×D×H): 49 × 50 × 7.5 cm
• Insulation type: polyurethane 43 kg/m3 (ecological, CFC-free)
• Defrost type: adaptive (condensate evaporation)
• Refrigeration: forced-air (professional)
• Temperature range: +2 / +15°C
