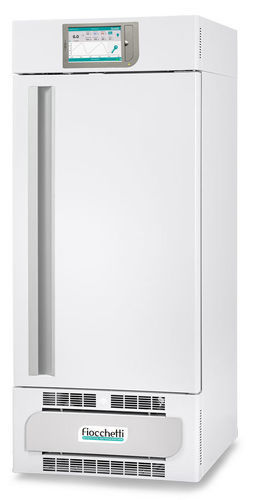

Laboratory refrigerator LABOR 200 TOUCH

cabinet1-doorwith forced air cooling

Overview
Medium-size professional refrigerator for medicines and vaccines, solid door, touchscreen and temperature recording. Certified medical device, risk class I.

Functional summary
Refrigerator from the LABOR series designed for laboratories, hospitals and the pharmaceutical industry. Solid thermally insulated door with ergonomic aluminium handle, magnetic gasket, reversible opening and automatic return under 90°. Adjustable internal compartments to optimize storage.

Key data
Temperature range: +2 / +15°C
Net capacity: 221 L (7.80 cu ft)
External dimensions (WxDxH): 60 x 64.5 x 146 cm
Electronic controller: TOUCH (Full Touch Screen 7")

Construction and refrigeration

• Internal dimensions: 50 x 48.5 x 90 cm
• Rated capacity: 200 L (7.06 cu ft)
• Net capacity: 221 L (7.80 cu ft)
• Insulation type: high-density foamed polyurethane 43 kg/m3, CFC-free, eco-friendly water injection
• Insulation thickness: 70 mm at rear / 50 mm at sides
• Structure: antibacterial white coated sheet metal internal and external or internal AISI 304 18/10 stainless steel; rounded inner corners; sump base designed to prevent leaks
• Mobility and stability: 4 unidirectional castors + 2 front feet
• Interior lighting: full-height LED with intensity adjustment
• Cooling type: professional forced-air refrigeration
• Defrost type: adaptive with condensation water evaporation
• Energy reduction: Night & Day function

Electronic controller (FULL TOUCH SCREEN 7")
Microprocessor controller with 7" touchscreen interface displaying all vital values, 0.1°C resolution and ±0.3°C accuracy. Temperature logging and alarms standard, real-time multi-trace graph, display of current temperature and setpoint (adjustable), configurable alarm limits, energy consumption and battery status (optional). Ports/storage: SD card slot for history, USB port for download/update, SIM card slot (optional GSM module). Connectivity: built-in web server (LAN RJ45), MODBUS TCP/IP. Anti-freeze and overheat protection, volt-free contact for remote alarm transmission. Optional accessories installable: electronic lock, power-failure audible/visual alarm, DMLP TOUCH module for independent temperature logging, GSM and Wi‑Fi modules, external terminal block, integration with local and cloud monitoring systems.

Technical data
Refrigerant type: R290
Consumption: 0.6 kWh/24h
Power input: 0.17 kW (Amp 1)
Starting current: Amp 3
Sound level: <45 dBA
Heat emission EN 12900: W 25
Max number of shelves: 5
Shelf dimensions: cm 46 x 45
Max number of drawers: 8
Internal drawer dimensions with dividers (LxDxH) (x n. of spaces): cm 11.8 x 40 x 7.5 (3)
Internal drawer dimensions without dividers (LxDxH): cm 39 x 40 x 7.5
Max number of wire drawers: 8
Internal wire drawer dimensions (LxDxH): cm 43.5 x 40.5 x 6.2

Accessories available on request

• Gateway IOT
• FIOCCHETTI LAN SUPERVISOR monitoring system
• Power-failure alarm
• External terminal block for ECT-F TOUCH
• Electronic lock
• DMLP TOUCH DIGITAL MONITOR
• Probe for temperature simulation
• DIN 13277 compliance (for ECT-F TOUCH)
• GSM module
• Wi‑Fi module
• 4-20 mA module
• Shelf for mod. 170-200-250-400
• Perforated steel shelf for mod. 170-200-250-400
• Wire rack cm 14 x 42 x 15 H (max 3 per shelf)
• Aluminium drawers with or without dividers for mod. 170-200-250-400
• Plexiglass back for drawer
• Extractable stainless steel wire drawer
• Drawer with lock for narcotics
• Wheel kit (2 with brakes) for mod. 170-200-250-400
• Internal power outlet
• Cable gland (mm 35 and mm 15)
• Humidity probe
• PT100 probe
• Power supply 220V/1~/60Hz or 115V/1~/60Hz
• Voltage stabilizer
• Wooden crate

Note
Product certified as a medical device, risk class I. Options and accessories enable customization of internal configuration and connectivity and logging functions.
