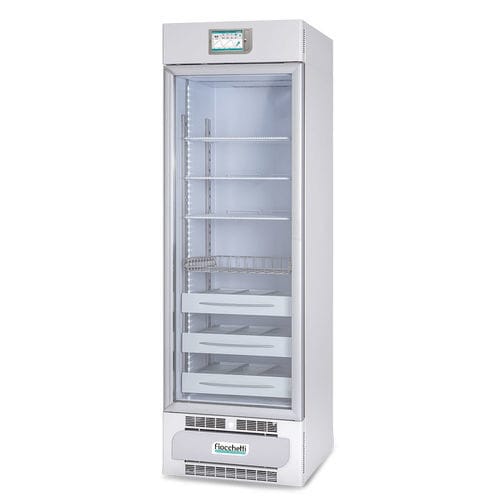

Pharmacy refrigerator MEDIKA 400 TOUCH

hospitalcabinet1-door

Summary
Mid‑size professional medical refrigerator for medicines and vaccines, class I medical device, best‑selling configuration with tempered glass door, temperature logging and advanced monitoring via 7" full touch controller.

Use and series
The MEDIKA® series medical refrigerators are designed for pharmacies, hospitals, clinics, laboratories and pharmaceutical production. Functional layout with adjustable compartments and configurable internal fittings to optimise storage of vials, ampoules and supplies. Complies with international standards and available in multiple capacities and custom internal configurations.

Door and construction
Tempered safety glass door compliant with IEC 61010‑1, anti‑fog and low emissivity; aluminium frame with full‑length ergonomic handle. Magnetic gasket on all sides. Automatic return under 90° and reversible opening direction. Internal surfaces in antibacterial white coated sheet metal or optional AISI 304 stainless steel. Rounded internal corners and leak‑preventing sump.

Controller and recording
Microprocessor electronic controller with 7" FULL TOUCH SCREEN, resolution 0.1°C and accuracy ±0.3°C. Standard temperature recording and alarms, real‑time multi‑trace graph, adjustable setpoint and alarm limits, energy consumption and battery status (optional).
Interfaces: SD card slot (history), USB port for downloads and updates, SIM slot for optional GSM module. Integrated web server for LAN (RJ45) and MODBUS TCP/IP. Frost and overtemperature protection. Dry contact for remote alarm transmission. Configurable audible and visual alarms with automatic logging and silent mode option.

Accessories available (on request)

• Gateway IOT
• FIOCCHETTI LAN SUPERVISOR monitoring system
• Power failure alarm
• External terminal block for ECT‑F TOUCH
• Electronic lock
• DMLP TOUCH DIGITAL MONITOR (independent logging)
• Temperature simulation probe
• DIN 13277 compliance kit (for ECT‑F TOUCH)
• GSM module
• Wi‑Fi module
• 4‑20mA module
• Shelves for models 170‑200‑250‑400
• Steel shelves for models 170‑200‑250‑400
• Perforated steel shelves for models 170‑200‑250‑400
• Wire rack 14 x 42 x 15 cm (max 3 per shelf)
• Aluminium drawers with/without dividers for models 170‑200‑250‑400
• Extractable stainless steel wire drawers
• Wheel kit (2 with brake) for models 170‑200‑250‑400
• Internal power inlet, cable glands Ø15/35 mm, humidity probe, PT100 probe, 220V/115V power supplies, voltage stabiliser, wooden transport crate

Structure and refrigeration
Internal dimensions: 50 x 48.5 x 140 cm
Nominal capacity: 400 lt
Net capacity: 347 lt
Insulation type: high‑density injected polyurethane (43 kg/m3), water‑blown, CFC‑free
Insulation thickness: 70 mm rear / 50 mm sides
Structure: antibacterial white coated sheet metal (int./ext.) or internal AISI 304 stainless steel. Rounded corners, sump to prevent leaks. Four fixed wheels and two front feet for maximum stability.
Internal lighting: full‑height LED
Refrigeration type: forced‑air professional refrigeration
Defrost type: adaptive defrost with condensate evaporation

Technical data

• Refrigerant: R290
• Consumption: 0.7 kWh/24h
• Input power: 0.17 kW
• Rated current: value indicated on nameplate
• Starting current: 3 A
• Noise level: <45 dBA
• Heat dissipation (EN 12900): 30 W
• Max shelves: 7 (shelf size 46 x 45 cm)
• Max drawers: 14
• Internal drawer dims with dividers (LxDxH): 11 x 40 x 7.5 cm (3 compartments)
• Internal drawer dims without dividers: 39 x 40 x 7.5 cm
• Max wire drawers: 14 (wire drawer internal dims: 43.5 x 40.5 x 6.2 cm)

Key points

• Operating range: +2 / +15 °C
• Net capacity: 347 lt
• External dimensions (WxDxH): 60 x 66 x 196 cm
• Controller: 7" TOUCH (ECT‑F TOUCH)
• Certifications: compliant with applicable standards, Class I medical device

Characteristics / technical specifications

• Model: MEDIKA 400 TOUCH
• Brand: Fiocchetti
• Refrigerant: R290
• Power consumption: 0.7 kWh/24h
• Input power: 0.17 kW
• Starting current: 3 A
• Noise level: <45 dBA
• Operating temperature: +2 / +15 °C
• Nominal / net capacity: 400 lt / 347 lt
• External dimensions: 60 x 66 x 196 cm
• Internal dimensions: 50 x 48.5 x 140 cm
• Insulation: high‑density polyurethane 43 kg/m3, rear 70 mm, sides 50 mm
• Structure: antibacterial coated sheet metal (int./ext.) or internal AISI 304 stainless steel
• Door: tempered anti‑fog low‑emissivity glass, aluminium frame, full‑length handle, reversible opening
• Refrigeration: forced‑air professional, adaptive defrost
• Lighting: full‑height LED
• Controller: 7" FULL TOUCH SCREEN (0.1°C resolution, ±0.3°C), temperature logging, alarms, multi‑trace graph, SD/USB/SIM, web server LAN, MODBUS TCP/IP, dry contact for alarms
• Compatible accessories: GSM/Wi‑Fi modules, DMLP TOUCH, electronic locks, external terminal block, integration modules, probes, internal fittings (shelves, drawers, racks…)
