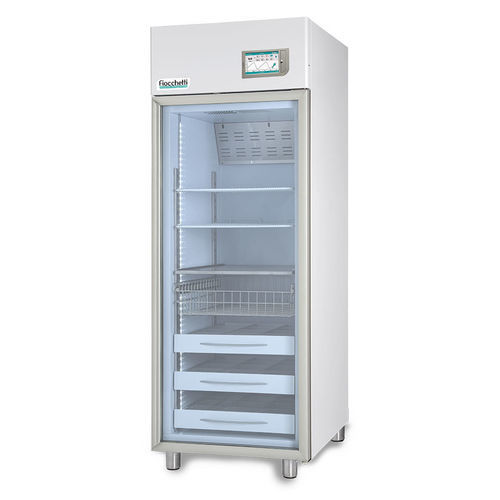

Laboratory refrigerator MEDIKA 700 TOUCH

for biopharmaceutical applicationsfor healthcare facilitiesfor dental offices

Presentation
Professional upright refrigerator, best-seller, with glass door and temperature recording, certified as a Class I medical device. Designed for safe storage of medicines and vaccines with a 7" full touch screen and configurable interior (shelves, drawers, baskets).

Applications

• Pharmacies
• Hospitals
• Medical practices
• Medical aesthetics centers
• Dental clinics
• Ophthalmology clinics
• Laboratories
• Pharmaceutical industry

Door and design
Tempered glass door compliant with IEC 61010-1 safety standards, anti-fog and low-emissivity, mounted on an aluminum frame. Full-length ergonomic handle, magnetic gasket around the perimeter, automatic return under 90° and reversible opening direction.

Structure and refrigeration
Internal dimensions: 60 x 68 x 150 cm
Nominal capacity: 700 lt (24.72 cu ft)
Net capacity: 620 lt (21.89 cu ft)
Insulation type: high-density foamed polyurethane (43 kg/m3), CFC-free, water-blown ecological injection
Insulation thickness: 75 mm
Structure: white antibacterial coated sheet metal internally and externally or optional internal AISI 304 18/10 stainless steel; rounded internal corners; tank bottom designed to prevent liquid leaks
4 adjustable feet for maximum stability
Internal lighting: LEDs along full compartment height
Refrigeration type: forced-air professional refrigeration
Defrost type: adaptive with condensate evaporation

Electronic controller
Microprocessor controller with 7" FULL TOUCH SCREEN displaying all vital values, resolution 0.1°C and accuracy ±0.3°C. Temperature recording and alarms standard, multi-trace real-time graph display, current temperature and setpoint (modifiable), adjustable alarm limits, energy consumption and battery status (optional).

• Storage: SD card slot for history, USB port for download and updates, SIM card slot (GSM module optional)
• Connectivity: built-in web server for LAN (RJ45), MODBUS TCP/IP
• Safety: anti-freeze and overheat protection, dry contact for remote alarm transmission
• Audible and visual alarms with silent mode and automatic logging
• Optional accessories: electronic lock, power-failure alarm, DMLP TOUCH module (independent recording), GSM and Wi‑Fi modules, external terminal block, integration with local and cloud monitoring systems

Technical data
Refrigerant type: R290
Consumption: 1 kWh/24h
Power input: 0.12 kW / Current 0.7 A
Starting current: 2.5 A
Noise level: 50 dBA
Heat dissipation EN 12900: 40 W
Max number of shelves: 7
Shelf dimensions: 56 x 65 cm
Max number of drawers: 14
Internal drawer dimensions with dividers (LxDxH) (x no. of compartments): 15 x 60 x 7.5 cm (3)
Internal drawer dimensions without dividers (LxDxH): 49 x 60 x 7.5 cm
Max number of wire drawers: 7
Internal wire drawer dimensions (LxDxH): 53.8 x 60.5 x 14.8 cm
Max number of shallow wire drawers: 14
Internal shallow wire drawer dimensions (LxDxH): 53.8 x 60.5 x 6.2 cm

Accessories available on request

• Gateway IOT
• FIOCCHETTI LAN SUPERVISOR monitoring system
• Power-failure alarm
• External terminal block for ECT-F TOUCH
• Electronic lock
• DMLP TOUCH DIGITAL MONITOR
• Probe for temperature simulation
• DIN 13277 compliance (for ECT-F TOUCH)
• GSM module
• Wi‑Fi module
• 4-20 mA module
• Shelf for models 700-1500
• Steel shelf for models 700-1500
• Perforated steel shelf for models 700-1500
• Wire rack 14 x 50 x 15 cm (max. 3 per shelf)
• Aluminium drawer (with/without dividers) for models 700-1500
• Plexiglass backrest for drawer
• Stainless steel basket
• Pull-out stainless steel wire drawers for models 700-1500
• Drawer with lock for narcotics
• Wheel kit (2 with brakes) for model 700
• Internal power outlet
• Cable gland (Ø 35 mm and Ø 15 mm)
• Humidity probe
• PT100 probe
• Power supplies 220V/1~/60Hz and 115V/1~/60Hz
• Voltage stabilizer
• Wooden crate

Features / technical specifications

• Temperature range: +2 / +15 °C
• Net capacity: 620 lt (21.89 cu ft)
• Nominal capacity: 700 lt (24.72 cu ft)
• External dimensions (WxDxH): 75 x 84.5 x 210 cm
• Internal dimensions: 60 x 68 x 150 cm
• Insulation: high-density polyurethane 43 kg/m3, thickness 75 mm
• Refrigeration type: forced-air (professional)
• Defrost: adaptive with condensate evaporation
• Refrigerant: R290
• Consumption: 1 kWh / 24h
• Power input: 0.12 kW (0.7 A); starting current: 2.5 A
• Noise level: 50 dBA
• Heat dissipation: 40 W
• Controller: 7" FULL TOUCH SCREEN (resolution 0.1°C, accuracy ±0.3°C) with recording and alarms
• Internal lighting: LED along full height
• Ergonomic handle, magnetic gasket, reversible door
