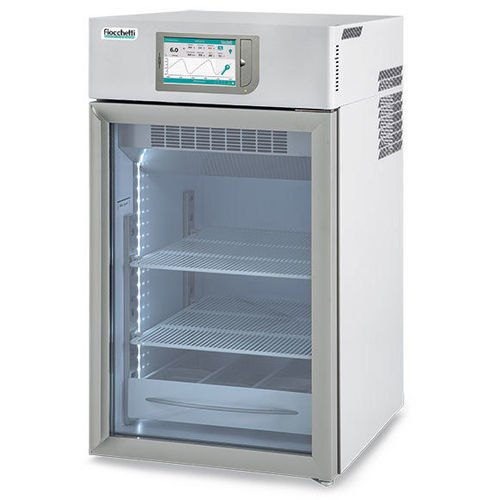

Pharmacy refrigerator MEDIKA 140 TOUCH

cabinet1-doorwith glass door

Short description
Small professional refrigerator for drugs and vaccines with glass door, 7" full touch screen and temperature/data recording. Certified as Medical Device Risk Class I.

Overview — MEDIKA series
The MEDIKA® series are pharmacy and vaccine refrigerators designed for pharmacies, hospital wards, clinics, dental and ophthalmology practices, laboratories and pharmaceutical industry. Clean functional design, adjustable compartments and configurable internal fittings to optimise storage and traceability. Available in several volumes and configurations; compliant with applicable international standards.

Door and sealing
Tempered, anti‑fog, low‑emissivity triple‑layer glass door with anodized aluminium profiles. Full‑length ergonomic handle. Magnetic gasket on four sides. Automatic return closing with door stop at 90°. Reversible opening side.

Main product features

• Temperature range: +2 / +15 °C
• Controller: TOUCH (7" full touch screen)
• Capacity (nominal / usable): 153 L (listed) / net usable 128 L; nominal internal 140 L
• External dimensions (WxDxH): 52 x 63.5 x 93.5 cm

Structure and refrigeration

• Inner dimensions: 44 x 51.6 x 56 cm
• Insulation: injected PUF 43 kg/m3, 40 mm thick, water‑foam based, CFC‑free
• Structure: monocoque; plasticized atoxic white steel with antibacterial film or inner 18/10 AISI 304 stainless steel; inner bottom with rounded corners
• Feet: 4 feet H = 1.5 cm
• Interior lighting: full‑length adjustable LED
• Refrigeration: professional ventilated; defrost automatic adaptive with condensate vaporization
• Energy saving: Night & Day function

Controller (7" FULL TOUCH SCREEN)
Microprocessor controller with 7" full touch interface, 0.1 °C resolution and ±0.3 °C accuracy. Standard functions include temperature and alarm recording with multi‑trace real‑time graph, editable set‑point and alarm limits, energy consumption display and battery status (option). Connectivity and slots:

• SD card slot for data history
• USB port for download and update
• SIM card slot (for GSM module, optional)
• Integrated web server for LAN (RJ45) and MODBUS TCP/IP
• Anti‑freeze and anti‑overheat safety devices
• Dry contact for remote alarm

Accessories / options (selection)

• Electronic lock
• Power failure acoustic/visual alarm kit
• DMLP TOUCH module for independent temperature recording
• GSM and Wi‑Fi modules; external terminal board
• Local and cloud monitoring systems; gateway IoT
• Shelves, pull‑out aluminium drawers with/without dividers, plexiglass fronts, wheels kit
• Humidity sensor; PT100 probe; access ports
• Power supply options: 220V/1~/60Hz or 115V/1~/60Hz; voltage stabiliser; wooden crate packaging

Technical data (key items)
Refrigerant: R290
Energy consumption: 0.6 kWh/24h
Power absorption: 0.14 kW / 0.9 A (inrush 2.5 A)
Noise level: <40 dBA
Heat rejection (EN 12900): 20 W
Shelves max: 3 (wire shelf size 40 x 47 cm)
Drawers max: 3; drawer inner dims with dividers (each): 10 x 45 x 7.5 cm; without dividers: 33 x 45 x 7.5 cm

Model and identification

• Model: MEDIKA 140 TOUCH
• Brand: Fiocchetti
• Intended use: storage of medicines and vaccines
