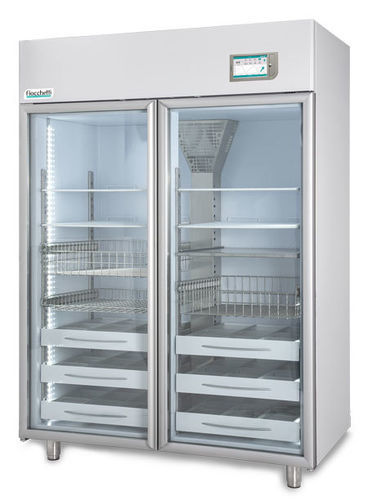

Laboratory refrigerator MEDIKA 1500 TOUCH

for vaccinesfor healthcare facilitieshospital

Overview
Large professional two-door refrigerated cabinet with glazed doors for storage of medicines and vaccines, temperature recording and certified as a Class I medical device. Functional design with tempered anti-fog, low-emissivity glass doors, aluminium frame and full-length ergonomic handle.

Use and applications
Designed for pharmacies, hospitals, medical offices (aesthetic, dental, ophthalmology), laboratories and the pharmaceutical industry. Available in multiple capacities and internal configurations (shelves, drawers, baskets) to optimise storage.

Door and construction features

• Tempered glazed doors compliant with IEC 61010-1, anti-fog and low-emissivity, mounted on an aluminium frame
• Magnetic gasket around the perimeter, automatic return device under 90° opening
• Internal/external structure in white antibacterial coated sheet metal; optional internal AISI 304 stainless steel
• Rounded internal corners; sump base designed to prevent leaks
• 4 height-adjustable feet for maximum stability

Lighting and energy-saving features

• Full-height internal LED lighting with adjustable intensity
• Energy consumption reduction via Night & Day function

Electronic controller (TOUCH)
Microprocessor controller with 7" FULL TOUCH SCREEN interface. Display and recording of vital values, resolution 0.1°C, accuracy ±0.3°C.

• Standard temperature recording and alarms
• Real-time multi-trace graphical display, current temperature and adjustable setpoint, configurable alarm limits
• Slots and ports: SD card slot (history), USB port (download and update), SIM card slot (optional GSM module)
• Built-in web server for LAN (RJ45) connection and MODBUS TCP/IP support
• Safety devices: anti-freeze, over-temperature protection, dry contact for remote alarm transmission
• Audible and visual alarms automatically recorded, option for silent mode
• Optional accessories: electronic lock, power-failure alarm, DMLP TOUCH independent recorder, GSM and Wi‑Fi modules, external terminal block, integration with local and cloud monitoring systems

Accessories available on request

• IoT gateway
• FIOCCHETTI LAN SUPERVISOR monitoring system
• Power outage alarm
• External terminal block for ECT-F TOUCH
• Electronic lock
• DMLP TOUCH Digital Monitor
• Probe for temperature simulation
• DIN 13277 compliance (for ECT-F TOUCH)
• GSM module
• Wi‑Fi module
• 4-20 mA module
• Shelf for models 700-1500
• Steel shelf for models 700-1500
• Perforated steel shelf for models 700-1500
• Wire rack 14 x 50 x 15 cm (max. 3 per shelf)
• Aluminium drawer (with/without dividers) for models 700-1500
• Plexiglass backrest for drawer
• Stainless steel basket
• Extractable stainless steel wire drawer for models 700-1500
• Wheel kit (2 with brakes) for model 1500
• Internal power outlet
• Cable passthrough hole Ø 35 mm / Ø 15 mm
• Humidity probe; PT100 probe
• Power supplies 220V/1~/60Hz and 115V/1~/60Hz; voltage stabiliser; wooden crate

Remarks
Certified in conformity with applicable international standards; the MEDIKA® series is available in several versions and controllers (TOUCH, ECT-F, ECT-F PLUS).
