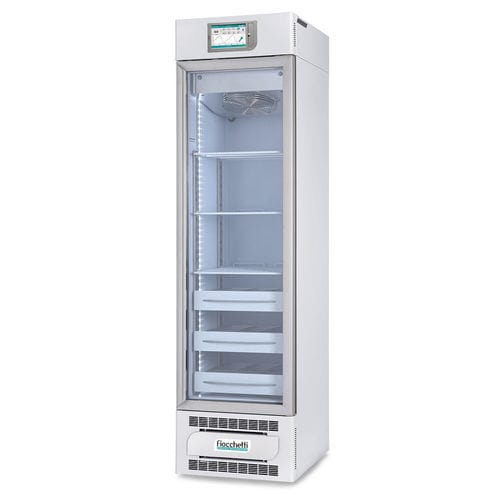

Laboratory refrigerator MEDIKA 300 TOUCH

cabinet1-doorwith glass door

Summary
Professional refrigerator for medicines and vaccines from the MEDIKA® series. Mid-size model with 52 cm width, glass door, touch controller and temperature logging. Certified as Class I medical device. Internal code: MED0302.

Applications and use
Designed for pharmacies, hospitals, medical and dental clinics, laboratories and the pharmaceutical industry. Functional design with adjustable compartments to optimize storage of medicines and vaccines.

Structure and refrigeration
Internal dimensions: 44 x 48.5 x 140 cm
Nominal capacity: 300 L (10.6 cu ft)
Net capacity: 265 L (9.4 cu ft)
Insulation type: high-density polyurethane foam 43 kg/m3, CFC-free, environmentally friendly water-injected foam
Insulation thickness: 70 mm at back / 50 mm at sides
Structure: antibacterial coated sheet metal inside and outside or AISI 304 18/10 stainless steel inside; rounded internal corners; inner bottom designed to prevent liquid leaks
Mobility and stability: 4 fixed-direction castors and two front feet for maximum stability
Internal lighting: LEDs along the full height of the compartment
Refrigeration type: forced-air professional refrigeration
Defrost type: adaptive with evaporation of condensed water

Door and closure
Tempered glass door according to IEC 61010-1; anti-condensation and low emissivity; aluminum frame; full-length ergonomic handle; magnetic gasket all around; automatic return device under 90°; reversible opening direction.

Electronic controller
Microprocessor controller with FULL TOUCH SCREEN 7" interface.
Display resolution: 0.1°C; accuracy: ±0.3°C.
Standard functions: temperature and alarm recording; real-time multi-trace graph display; simultaneous display of current temperature and setpoint (adjustable); alarm limit settings; indication of energy consumption and battery status (option).
Ports and slots: SD card slot (history), USB port for download and updates, SIM card slot (GSM module optional).
Connectivity: built-in web server for LAN (RJ45) connection and MODBUS TCP/IP.
Security and alarms: anti-freeze and anti-overheat protection, dry contact for remote alarm transmission, audible and visual alarms with automatic recording and configurable silent mode.
Optional accessories (installable separately):

• Electronic lock
• Audible and visual power-failure alarm
• DMLP TOUCH module for independent temperature logging
• GSM and Wi‑Fi modules
• External terminal block
• Integration with local and cloud monitoring systems

Accessories available on request

• Key lock
• Shelves for models 100-140-280-300
• Aluminium drawer with dividers for model 600 2T
• Aluminium drawer without dividers for model 600 2T
• Plexiglass back panel for drawer
• Internal power inlet
• Cable pass-through hole with 35 mm plug
• Cable pass-through hole 15 mm
• Humidity probe
• PT100 probe
• Power supply 220V/1~/60Hz
• Power supply 115V/1~/60Hz
• Voltage stabilizer
• Wooden crate

Features / Technical specifications

• Temperature range: +2 / +15 °C
• Net usable capacity: 265 L (9.4 cu ft) — nominal capacity: 300 L (10.6 cu ft)
• External dimensions (W x D x H): 52 x 66 x 196 cm
• Internal dimensions: 44 x 48.5 x 140 cm
• Insulation type: high-density polyurethane 43 kg/m3 (water-injected)
• Insulation thickness: 70 mm (back) / 50 mm (sides)
• Materials: antibacterial coated sheet metal internal/external or AISI 304 18/10 stainless steel internal
• Lighting: LED full-height
• Refrigeration type: forced-air professional
• Defrost: adaptive with evaporation of condensed water
• Refrigerant: R290
• Consumption: 1.2 kWh/24h
• Rated power: 0.19 kW (Current 1.3 A)
• Inrush current: 3 A
• Noise level: < 50 dBA
• Heat dissipation (EN 12900): W 30
• Max number of shelves: 6 — shelf dimensions: 40 x 47 cm
• Max number of drawers: 12
• Internal drawer dimensions with dividers (LxDxH): 9.8 x 40 x 7.5 cm (3 compartments)
• Internal drawer dimensions without dividers (LxDxH): 33 x 40 x 7.5 cm
• Controller: FULL TOUCH SCREEN 7" — temperature recording, alarms, multi-trace graph, SD/USB ports, SIM slot, webserver LAN (RJ45), MODBUS TCP/IP
• Ports and interfaces: SD card, USB, RJ45 (LAN); SIM slot for GSM module (optional)
