Resin dental material IBT Flex

for orthodontic bracketsfor orthodontic bondsfor dental restorations

Product overview
IBT Flex Resin is a Class I biocompatible SLA resin formulated for flexible, tear‑resistant indirect bonding trays and direct composite restoration guides. The formulation balances elongation, tear strength, translucency and color to enable accurate transfer of orthodontic brackets and restorative composites while reducing intraoral adjustments.

Key benefits

• Enhanced elongation and flexibility for atraumatic intraoral placement and removal
• High tear strength for predictable, repeatable fit
• Optimized translucency to visualize brackets, composite and dentition beneath the tray/guide
• High print accuracy and viscoelastic properties that reduce intraoral adjustments
• Manufactured in an ISO 13485‑certified facility; FDA‑registered and CE marked under EU MDR

Applications

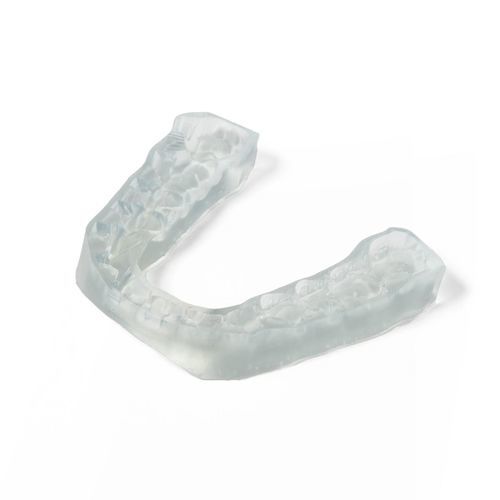

• Indirect bonding trays for orthodontic bracket placement
• Direct composite restoration guides

Compatibility & recommended equipment

• Compatible build platforms: Form 4 Build Platform; Form 4 Flex Build Platform; Form 3 Build Platform; Form 3 Build Platform 2; Form 3 Stainless Steel Build Platform; Form 3L Build Platform; Form 3L Build Platform 2L; Form 4L Build Platform; Form 4L Flex Build Platform
• Compatible tanks: Form 3 Resin Tank V2.1; Form 3L Resin Tank V3; Form 4 Resin Tank; Form 4L Resin Tank
• Compatible printers: Form 4B; Form 4BL; Form 3B; Form 3BL

Post-processing (summary)

• Washing: remove uncured surface resin with isopropyl alcohol as the first SLA post‑processing step
• Curing: post‑cure is required for biocompatible materials—follow the material Manufacturing Guide/IFU for exact settings
• For restorative guides: apply a separating agent to the tray to prevent composite adherence

Bulk order discount tiers (volume → discount)

• 30 L → 15%
• 60 L → 20%
• 120 L → 25%
• 240 L → 30%
• 1,000 L → 35%
• 2,000 L → 40%
• 3,000 L → 45%

Additional notes

• Material properties may vary with part geometry, orientation, print settings, temperature and post‑processing methods
• Data were measured on post‑cured samples printed on a Form 3B+ with 100 µm IBT Flex Resin settings; washed in a Form Wash and cured in a Form Cure according to the Manufacturing Guide; testing performed at NAMSA

Technical specifications

• Print technology: SLA
• Biocompatibility: skin contact; mucosal membrane contact (Class I biocompatible)
• Color: Transparent
• Applications: Direct composite restoration guides; Indirect bonding trays
• Transparency (2 mm sample): 85.0 %
• Ultimate tensile strength: 7.2 MPa
• Elongation at break: 135.0 %
• Shore hardness: 77 - 80 A
• Tensile modulus: 8.0 MPa
• Chemical disinfection: 70% Isopropyl Alcohol for 5 minutes (per material notes)
