Resin dental material Custom Tray

for dental bridgesfor dental crownsfor implant systems

Overview

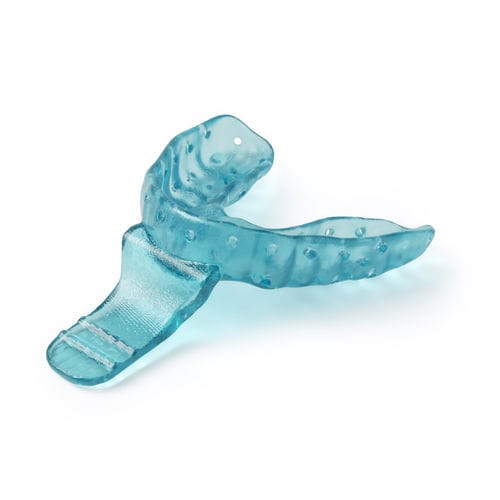

Custom Tray Resin is a fast-printing, biocompatible SLA resin designed to directly print custom impression trays for implants, dentures, crowns and bridges, and other comprehensive restorative cases. Digitally manufactured trays deliver consistent, accurate definitive impressions and support higher throughput using 200 μm layer heights (supports 100 μm for higher-fidelity).

Key benefits

• High throughput: fast print times at 200 μm (supports 100 μm) for production-ready trays.
• Accuracy: enables patient-matched trays for consistent, definitive impressions.
• Versatile: suitable for crown & bridge, implants, dentures and comprehensive restorative workflows.
• Biocompatible: rated for skin and mucosal membrane contact when processed per IFU.

Manufacturing & quality
Manufactured in an ISO 13485–certified facility within an ISO Class 8 cleanroom and produced under a Quality Management System compliant with applicable medical device regulations.

Post-processing & workflow
Two post-processing steps required: washing to remove uncured resin (validated Form Wash, ultrasonic, or alcohol wash) and post-curing to achieve biocompatibility. Follow the full application and manufacturing guide for recommended wash times, solvents, and curing parameters.

Applications
Use Custom Tray Resin for definitive custom impression trays in crown and bridge, implant, denture and other comprehensive restorative cases where accurate intraoral impressions are required.

Technical specifications
Compatible tanks: Form 2 LT Tank; Form 3 Resin Tank V2.1; Form 3L Resin Tank V3; Form 4 Resin Tank; Form 4L Resin Tank
Compatible build platforms: Form 4 Build Platform; Form 4 Flex Build Platform; Form 3 Build Platform; Form 3 Build Platform 2; Form 3 Stainless Steel Build Platform; Form 3L Build Platform; Form 3L Build Platform 2L; Form 4L Build Platform; Form 4L Flex Build Platform
Print technology: SLA
Compatible printers: Form 4B, Form 4BL, Form 3B, Form 3BL
Color: Blue
Biocompatibility: Skin contact, mucosal membrane contact
Mechanical properties (post-cured): Ultimate tensile strength ≈ 70 MPa; Elongation at break ≈ 3%; Flexural strength ≈ 100 MPa; Flexural modulus ≈ 2600 MPa; Tensile modulus ≈ 2500 MPa; Shore hardness ≈ 80 D

Notes
Material properties vary with part geometry, print orientation, settings and temperature. Data reported from post-cured samples measured on standardized test specimens. Follow IFU and material datasheet for validated processes.

Product characteristics / specifications

• Product name: Custom Tray Resin
• Material type: Biocompatible SLA resin for custom impression trays
• Typical print layer height: 200 μm (supports 100 μm)
• Color: Blue
• Compatible printers: Form 4B, Form 4BL, Form 3B, Form 3BL (see full list above)
