Resin dental material Fast Model

orthodonticfor 3D printingmodeling

Product description

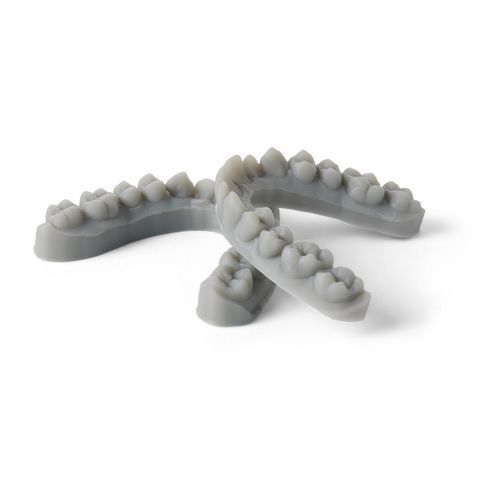

Fast Model Resin is a fast-printing resin formulated for high-throughput production of thermoforming dental models such as clear aligner models. When printed with the recommended profiles, it reliably produces 11 arches per job with 95% of the printed surface area within 100 μm of the digital model. Two dedicated print profiles are provided: a 160 μm Fast Arch for maximum speed and throughput, and a 100 μm Fast Arch for improved surface finish.

Print settings (examples)

• 160 μm Fast Arch — Print Time: 8.5 min for 11 models
• 100 μm Fast Arch — Print Time: 13 min for 11 models

Notes

• Designed for high-throughput thermoforming models such as clear aligner models.
• 95% of printed surface area within 100 μm of the digital model when printed with recommended settings.

Specifications / technical details

• Print Technology: SLA
• Category: Dental
• Material: Fast Model Resin (fast-printing resin for thermoforming models)
• SKU: SP-FMGR-ORTHO-42
• Typical printed quantity per job: 11 arches
• Accuracy: 95% of printed surface area within 100 μm of the digital model
• Layer thickness / print time examples: 160 μm (Fast Arch) — 8.5 min for 11 models; 100 μm (Fast Arch) — 13 min for 11 models
• Recommended use: Thermoforming models / clear aligner model production
