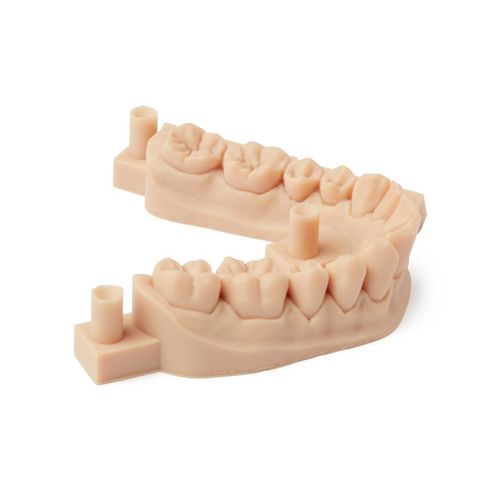

Resin dental material Model V2

for 3D printingfor dental laboratoriesmodeling

Overview
Model Resin V2 is a legacy formulation of our model resin that will be retired in the near future. The new formulation of Model Resin can print more accurate models in half the time.

Recommendation
Choose Model Resin V3 instead on Form 3 and Form 2 Series printers or Precision Model Resin on the Form 4 Series for better accuracy, faster speed, and improved aesthetics.

Key product information

• Compatible build platforms: Form 3 Build Platform; Form 3 Build Platform 2; Form 3 Stainless Steel Build Platform; Form 3L Build Platform; Form 3L Build Platform 2L
• Compatible tanks: Form 2 LT Tank; Form 3 Resin Tank V2.1; Form 3L Resin Tank V3
• Compatible printers: Form 3; Form 3L; Form 3B; Form 3BL; Form 2
• Print technology: SLA
• Categories: General Purpose
• Minimum layer thickness: 50 micron
• Colors: Beige, Matte
• Applications: Dental

Mechanical and thermal properties
Tensile Modulus: 2700.0 MPa
Flexural Modulus: 2500.0 MPa
Elongation at Break: 5.0 %
Ultimate Tensile Strength: 61.0 MPa
Notched Izod: 33.0 J/m
Heat Deflection Temperature @ 1.8 MPa: 46.0 °C
Heat Deflection Temperature @ 0.45 MPa: 49.0 °C

caractéristiques / spécifications techniques

• Compatible build platforms: Form 3 Build Platform; Form 3 Build Platform 2; Form 3 Stainless Steel Build Platform; Form 3L Build Platform; Form 3L Build Platform 2L
• Compatible tanks: Form 2 LT Tank; Form 3 Resin Tank V2.1; Form 3L Resin Tank V3
• Compatible printers: Form 3; Form 3L; Form 3B; Form 3BL; Form 2
• Print technology: SLA
• Category: General Purpose
• Minimum layer thickness: 50 micron
• Colors: Beige, Matte
• Applications: Dental
• Tensile Modulus: 2700.0 MPa
• Flexural Modulus: 2500.0 MPa
• Elongation at Break: 5.0 %
• Ultimate Tensile Strength: 61.0 MPa
• Notched Izod: 33.0 J/m
• Heat Deflection Temp. @ 1.8 MPa: 46.0 °C
• Heat Deflection Temp. @ 0.45 MPa: 49.0 °C
