Resin dental material Fast Model Print Time

for anatomical modelsfor 3D printingliquid

Product overview
Fast Model Resin is Formlabs’ fastest 3D printing resin, capable of printing at speeds up to 100 mm per hour. Print dental models in minutes or large prototypes in less than two hours.

Key benefits

• Print speeds over 100 mm per hour
• Full builds in less than 2 hours
• Speed without compromising quality
• Matte gray with smooth surface finish

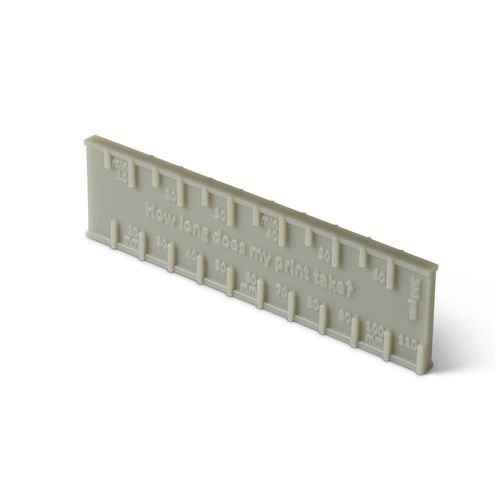

About this part
This part is a ruler with indications for how long a print will take in Fast Model Resin on Form 4. One side has markings for printing with a 100 µm layer height and the other shows estimated times for 200 µm layer height. Form 4 uses the new Low Force Display™ (LFD) print engine that uniformly exposes each layer causing print times to be independent of the size or number of parts in the X-Y plane. Thus, the print time can be estimated by measuring the vertical height of a part in the orientation it would be printed.

Example print data
Layer Thickness: 200 µm
Print Time: 31 parts in 19 minutes on Form 4

Technical specifications

• Brand: Formlabs
• SKU: SP-FMGR-RULER-41
• Material: Fast Model Resin (Fast Model Resin from Formlabs)
• Print technology: SLA
• Category: Standard
• Typical print speed: up to 100 mm per hour
• Full-build examples: full builds in less than 2 hours (application dependent)
• Color / finish: matte gray, smooth surface finish
• Layer thickness (example on ruler): 100 µm markings on one side; 200 µm estimated times on the other
• Example print time (Form 4): 31 parts in 19 minutes at 200 µm
• Compatible printer reference: Form 4 (uses Low Force Display™ print engine)
