Resin dental material Grey V5

for 3D printingliquidpre-colored

Overview
Grey Resin V5 is a general-purpose SLA resin that balances fast print speed, high accuracy, presentation-ready surface finish and mechanical properties suitable for functional prototypes and end-use parts.

• Surface finish comparable to injection molding
• Minimum feature size: 50 μm
• Versatile mechanical properties for functional assemblies
• Typical print speed: up to 50 mm/hr

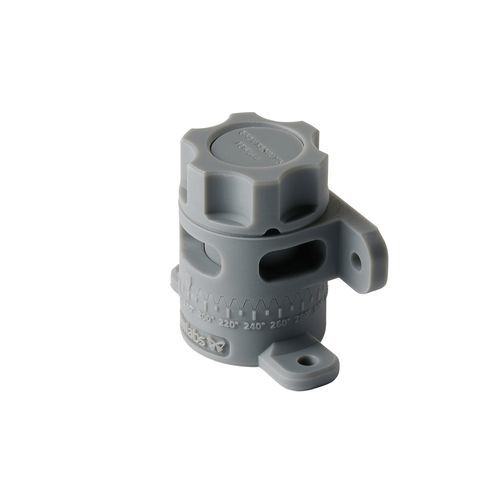

Bracket design
The bracket incorporates a Hirth joint to adjust the angle between two components in 10° increments. A threaded cap secures the serrated teeth; tapered teeth are enabled by the ±0.15% dimensional tolerances of the Form 4. The material and printer resolution allow an embossed position indicator and printed M20 x 2.5 mm threads.

Print settings
Layer thickness: 100 μm
Print time example: 7 full sets (21 pieces) in 1 hour 12 minutes on Form 4

Technical specifications

• Material: Grey Resin V5
• Print technology: SLA
• Category: Standard
• Minimum feature size: 50 μm
• Typical print speed: up to 50 mm/hr
• Layer thickness used for this part: 100 μm
• Print time example: 7 full sets (21 pieces) in 1 hour 12 minutes on Form 4
• Design features: Hirth joint (10° increments), threaded cap securing serrated teeth, tapered teeth enabled by ±0.15% Form 4 dimensional tolerances
• Detail capabilities: embossed position indicator and M20 x 2.5 mm printed threads
• SKU: SP-GPGR-ANGLE-41
