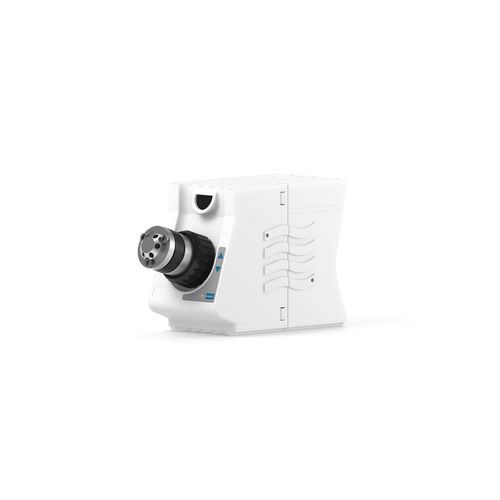

Selector valve MX Series II™ 2

rotaryhigh-pressure

Overview
The MX Series II™ 2-position/6-port UltraLife™ switching valve features MBB® (Make-Before-Break) architecture to maintain uninterrupted flow when switching between LOAD and INJECT with a loop installed between ports 1 and 4. It is a motorized, ultra-high-pressure switching valve. Power cords are sold separately under valve accessories.

Key features

• Material: UltraLife
• 6 ports and 2 positions
• Motorized switching operation
• MBB® (Make-Before-Break) architecture to prevent flow interruption during switching
• Ultra high pressure rating suitable for demanding applications

Technical specifications

• Material: UltraLife
• Ports: 6
• Positions: 2
• Valve type: Switching
• Pressure rating max (psi): 15000
• Pressure rating max (bar): 1034
• For tubing OD (in): 1/16
• Thread port configuration (coned): 10-32

Ordering & accessories

• Power cords not included; available separately under valve accessories
• Specify tubing and fittings required when ordering
