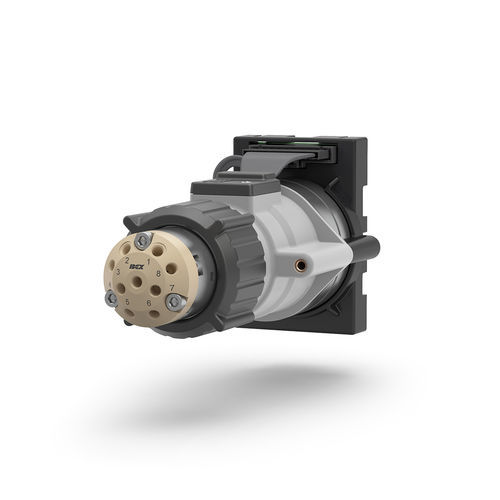

Valve for life sciences applications TitanHP

selectorrotary

Product overview
Designed and tested for reproducible performance, the TitanHP 8/9 reagent selection valve delivers accurate reagent distribution across analytical instruments. The rotary actuator is validated for reliable operation over millions of fluid-distribution cycles. The valve flow path is optimized to minimize system pressure and includes a pre-mounted PCB for straightforward integration using the complementary Python®-based IDEX Health & Science library.

Valve Design and System Integration Resources
Topic | Description
Valve Solutions Guide | Proven valve options for applications requiring salt solutions, fast cycle times or minimal carryover; tested to millions of cycles to maximize system uptime.
Understanding and Testing Fluid Flow for Custom Valve Design White Paper | Use simulation-driven prototyping to iterate complex stator geometries and select optimal designs before manufacturing.
Integrated Fluidic Subsystems Brochure | Manifold-mounted or standalone rotary shear valves with tight tolerances for direct fluid control and reduced fluidic system complexity.
Chemical Compatibility Guide | Check material compatibility and review compatibility ratings for planned chemicals.

Related Applications
Topic | Description
Next Generation Sequencing | Precise, repeated reagent cycling for NGS platforms with consistent valve timing.
Spatial Transcriptomics | Rapid, reliable fluidic control for spatial-omics workflows targeting proteins, RNA or DNA.

Documents

• MHP7790-002-3 - Reagent Selection Valve, 8 Position, 9 Port (product data sheet)

Specifications

• IDEX Part Number: MHP7790-002-3
• Material: PEEK/RPC-7
• Ports: 9
• Positions: 8
• Valve Type: Low Pressure, Selector
• Valve Family: TitanHP
• Pressure Rating Max: 50 psi / 3.5 bar
• Control Logic: UART, I2C, RS-232
