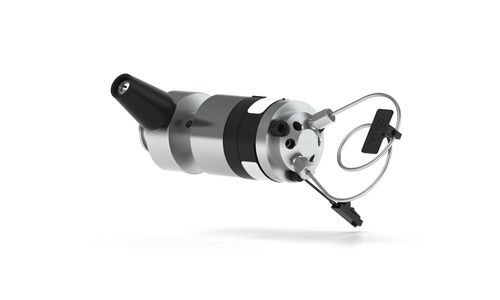

HPLC valve Analytical Front Loading Injection Valve

rotarystainless steelhigh-pressure

Description
Front-loading injection valve with MBB (Make-Before-Break) architecture. Includes a position sensing switch. Sample is loaded through the front using a syringe; a 20 µL sample loop is connected between ports 1 and 4. Constructed from stainless steel for analytical applications. The valve has 2 positions and 6 ports and is rated up to 5000 psi (345 bar).

Product identifiers
IDEX Part Number: 7725I

Features

• MBB (Make-Before-Break) architecture
• Position sensing switch included
• Front-loading sample injection using a syringe
• 20 µL sample loop connected between ports 1 and 4
• Stainless steel construction
• 2 positions, 6 ports

Specifications

• Material: Stainless Steel
• Ports: 6
• Positions: 2
• Pressure Rating Max (psi): 5000
• Pressure Rating Max (bar): 345
• For Tubing OD (in): 1/16
• Thread Port Configuration Coned: 10-32

Technical specifications

• Material: Stainless Steel
• Ports: 6
• Positions: 2
• Pressure Rating Max: 5000 psi (345 bar)
• For Tubing OD: 1/16 in
• Thread Port Configuration Coned: 10-32
• Sample loop: 20 µL connected between ports 1 and 4
• Architecture: MBB (Make-Before-Break)
• Includes position sensing switch
