Selector valve MX Series II™ 6

high-pressure

Product description

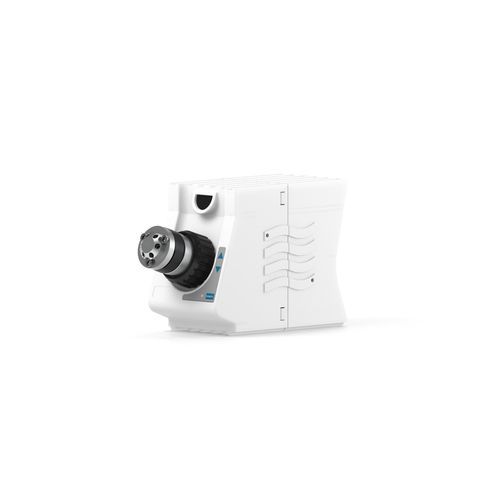

The MX Series II™ motorized selector valve is a compact, stand-alone switching and injection valve designed for demanding analytical systems. It features an UltraLife material construction and a motorized 6-position/7-port configuration rated for ultra-high pressure. Power cord is not included and is available separately under valve accessories.

Identification

• IDEX Part Number: MXT715-105
• Product Name: MX Series II™ 6 Position/7 Port UltraLife Selector Valve

Specifications (table)

• Material: UltraLife
• Ports: 7
• Positions: 6
• Valve type: Selector
• Pressure rating max: 15,000 psi (1,034 bar)
• For tubing OD: 1/16 in
• Thread port configuration (coned): 10-32

Technical features

• Motorized 6-position, 7-port selector valve for switching and injection
• UltraLife material for chemical compatibility in analytical applications
• Rated to 15,000 psi (1,034 bar) for ultra-high-pressure operation
• Compact stand-alone unit suitable for integration into analytical systems
• Power cord sold separately; see valve accessories for compatible cords
