Check valve for life sciences applications CV-3001medicalfor the pharmaceutical industrydirect-operated
Add to favorites
Compare this product
Characteristics
- Applications
- for life sciences applications, medical, for the pharmaceutical industry
- Technology
- direct-operated
- Material
- plastic, stainless steel
- Other characteristics
- modular, high-pressure
Description
Description

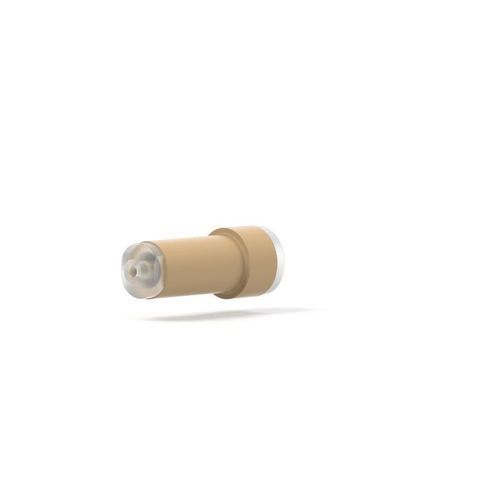

Inline cartridge designed for the CV-3000 check valve assembly. Constructed from biocompatible, inert PEEK with a gold-plated stainless steel spring. Cracking pressure: 1.5 psi (0.1 bar), suitable for medical and analytical fluidic systems.
Product information
IDEX Part Number: CV-3001
Intended assembly: CV-3000
Specifications
Material: PEEK
Pressure Rating Max (psi): 1000
Cracking Pressure (bar): 0.1
Cracking Pressure (psi): 1.5
Pressure Rating Max (bar): 69
Swept Volume µL: 91
Thread Port Configuration Flat-Bottom: 1/4-28
Technical features
Inline cartridge designed for the CV-3000 check valve assembly. Constructed from biocompatible, inert PEEK with a gold-plated stainless steel spring. Cracking pressure: 1.5 psi (0.1 bar), suitable for medical and analytical fluidic systems.
Product information
IDEX Part Number: CV-3001
Intended assembly: CV-3000
Specifications
Material: PEEK
Pressure Rating Max (psi): 1000
Cracking Pressure (bar): 0.1
Cracking Pressure (psi): 1.5
Pressure Rating Max (bar): 69
Swept Volume µL: 91
Thread Port Configuration Flat-Bottom: 1/4-28
Technical features
- Material: PEEK
- Spring: gold-plated stainless steel
- Intended assembly: CV-3000
- Cracking pressure: 1.5 psi (0.1 bar)
- Pressure rating max: 1000 psi (69 bar)
- Swept volume: 91 µL
- Thread port configuration (flat-bottom): 1/4-28
