Selector valve MX Series II™ 10

medicalrotary

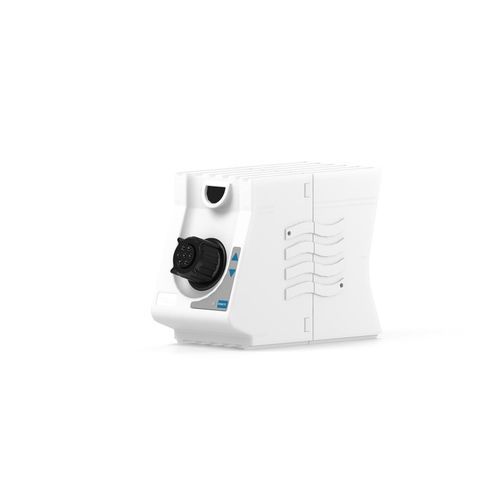

Product description The MX Series II™ motorized selector valve is designed for demanding analytical laboratory applications. It can be integrated into an instrument or configured as a compact stand-alone unit for switching and injection tasks. The valve is a low-pressure, motor-driven 10-position / 11-port selector manufactured in RPC-7. Power cords are not included and are available separately as valve accessories.

Key features

• Compact stand-alone or instrument-mounted configuration
• Suitable for switching and injection applications
• Motorized selector operation
• 10 positions / 11 ports
• Low-pressure design (max. 125 psi / 9 bar)
• Power cords sold separately (not included)

Technical specifications

• Material: RPC-7
• Ports: 11
• Positions: 10
• Valve type: Selector
• Maximum pressure rating: 125 psi (9 bar)
