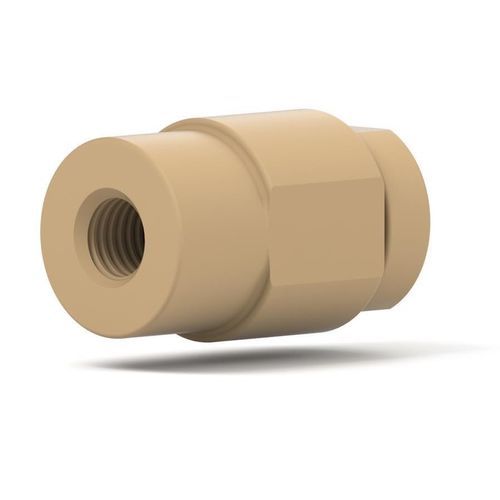

Check valve for life sciences applications CV-3330medicalplasticaseptic
Add to favorites
Compare this product
Characteristics
- Applications
- for life sciences applications, medical
- Material
- plastic
- Other characteristics
- aseptic, high-pressure
Description
Product description
Our Inline Non‑Metallic Check Valve is biocompatible and delivers a low cracking pressure. Constructed from PEEK (body) and Perfluoroelastomer (elastomer), the valve provides excellent chemical resistance and a metal‑free flow path suitable for corrosive fluids and biological samples. It features a female‑to‑female 1/4‑28 thread configuration and a .020 in thru‑hole for precise fluidic control.
Technical information
Valve Instruction Guide: Learn how to use the Biocompatible Inlet / Outlet 1/4‑28 to 10‑32 Inline Check Valve from IDEX Health & Science in your fluidic flow path.
Key features / technical specifications
Our Inline Non‑Metallic Check Valve is biocompatible and delivers a low cracking pressure. Constructed from PEEK (body) and Perfluoroelastomer (elastomer), the valve provides excellent chemical resistance and a metal‑free flow path suitable for corrosive fluids and biological samples. It features a female‑to‑female 1/4‑28 thread configuration and a .020 in thru‑hole for precise fluidic control.
Technical information
Valve Instruction Guide: Learn how to use the Biocompatible Inlet / Outlet 1/4‑28 to 10‑32 Inline Check Valve from IDEX Health & Science in your fluidic flow path.
Key features / technical specifications
- Materials: PEEK (body) and Perfluoroelastomer (elastomer)
- Biocompatible
- Metal‑free composition
- Low cracking pressure
- Chemical resistance: excellent (PEEK and Perfluoroelastomer)
- Port configuration: female to female 1/4‑28 thread
- Thru hole: 0.020 in
- Pressure Rating Max: 2000 psi (138 bar)
- Cracking Pressure: 0.07 bar (1 psi)
- Swept Volume: 34 µL
- Thread Port Configuration (Flat‑Bottom): 1/4‑28
