HPLC valve TitanHT

selectorrotaryhigh-pressure

Description

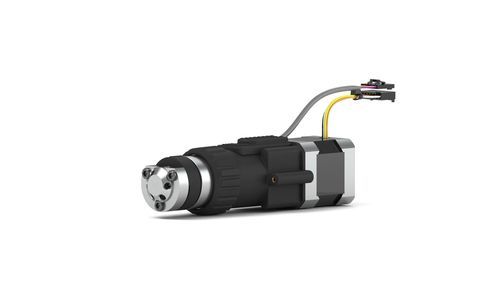

The Titan HT is a motorized vertical-port injection valve engineered for ultra-high-pressure fluid handling. It provides 2-position, 6-port switching driven by an advanced composite actuator and a high-torque motor for durable, consistent operation. The removable Rapid Replacement Pod™ (liquid-end) allows fast replacement of wear components with minimal instrument downtime.

Features

• Advanced composite actuator and large motor for rugged, reliable operation
• Ultra-high-pressure operation (up to 15,000 psi / 1,034 bar)
• 2-position, 6-port motorized vertical-port switching for injector applications
• Rapid Replacement Pod™ (removable liquid-end) for quick serviceability

Specifications

• Material: UltraLife
• Ports: 6
• Positions: 2
• Valve type: Injector, vertical port, ultra-high pressure
• Valve family: TitanHT
• Maximum pressure: 15,000 psi (1,034 bar)
• Thread port configuration (coned): 10-32
• IDEX part number: HT715-121
