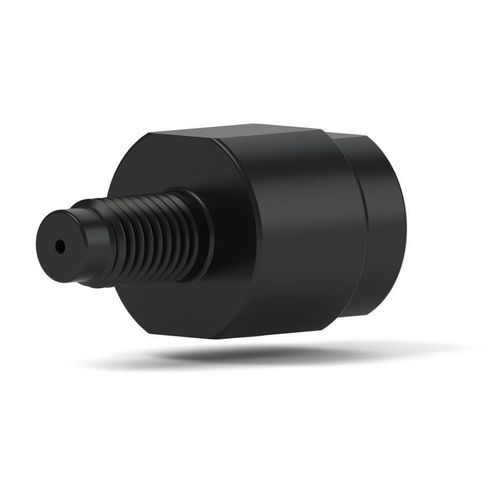

Medical check valve CV-3323

for life sciences applicationsplastichigh-pressure

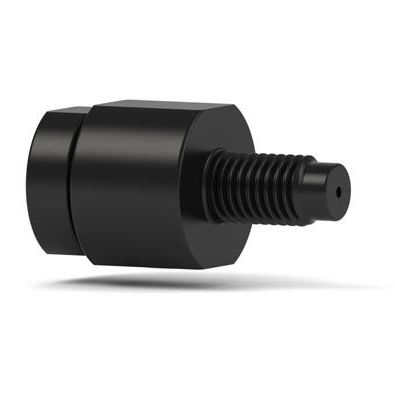

Product description Our non-metallic outlet check valve CV-3323 is biocompatible and provides a low cracking pressure. Constructed from PEEK and perfluoroelastomer, it offers excellent chemical resistance. Its metal-free composition makes this check valve suitable for use with corrosive fluids and biological samples. The valve has a female-to-male 1/4-28 thread port configuration and a .040 thru hole.

Technical information Non-Metallic 1/4-28 inline check valves instruction guide — learn how to install non-metallic 1/4-28 check valves into your fluidic system.

Technical specifications

• Pressure Rating Max (psi): 2000
• Pressure Rating Max (bar): 138
• Cracking Pressure (psi): 1
• Cracking Pressure (bar): 0.07
• Swept Volume µL: 49
• Thread Port Configuration Flat-Bottom: 1/4-28
• Materials: PEEK; Perfluoroelastomer
• Composition: Metal-free
• Port configuration: female to male 1/4-28 thread
• Thru hole: .040
• Biocompatible; low cracking pressure; excellent chemical resistance; suitable for corrosive fluids and biological samples
• IDEX Part Number: CV-3323
• Unit of measure: Each
