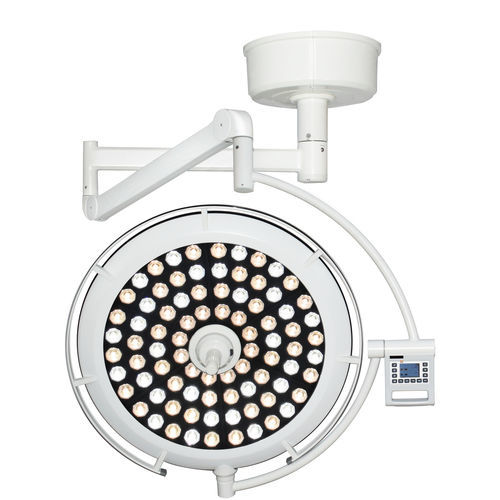

Ceiling-mounted surgical light FY-700A

LEDminor surgeryfor operating rooms

Description
The FY-700A LED surgical light uses imported German Osram LED chips and precision dia-cut optical lenses to deliver uniform, high-intensity illumination with low thermal emission. Its ultra-thin aluminum-alloy lamp head and ergonomic mechanical design allow flexible manual positioning and focus adjustment, providing stable, shadow-minimized lighting for a wide range of operating room procedures.

Key Features

• Ultra-thin 700 mm lamp head with aluminum-alloy housing
• 84 imported German Osram LEDs with individual dia-cut optical lenses for uniform light field
• Adjustable brightness 40,000–160,000 Lux and color temperature 3700–5000 K
• Manual central handle and anti-slip grip-ring for precise positioning and focus (120–300 mm)
• Low area temperature rise <1°C to minimize thermal impact on the surgical field
• High CRI (Ra 85–97) for accurate tissue color rendering
• Long lifespan ≥80,000 hrs and energy-efficient 84 W power consumption

Technical Specifications

• Model: FY-700A
• Lamp head diameter: 700 mm
• Lamp head thickness: ≤9 cm
• LED bulbs: 84 pcs (Imported German Osram)
• Brightness: 40,000–160,000 Lux (adjustable)
• Color temperature: 3700–5000 K (adjustable)
• Lighting focus range: 120–300 mm (manual)
• Lighting depth: 500–1800 mm
• CRI (Ra): 85–97
• Power consumption: 84 W
• Power input: AC 100–240 V, 50/60 Hz
• Area temperature rise: <1°C
• Light source lifespan: ≥80,000 hrs
• Warranty: 2 years

Applications

• Designed for operating rooms and surgical procedures: general surgery, orthopedics, gynecology, ENT and minor procedure suites
• Suitable for hospitals, clinics and surgical centers requiring adjustable, shadow-minimized illumination
