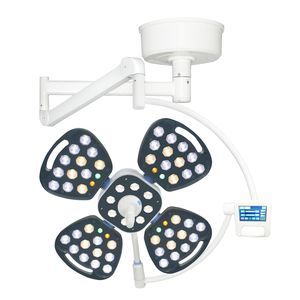

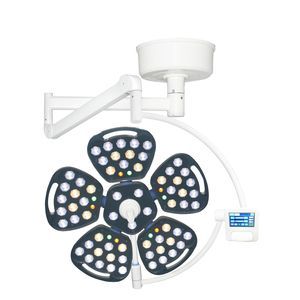

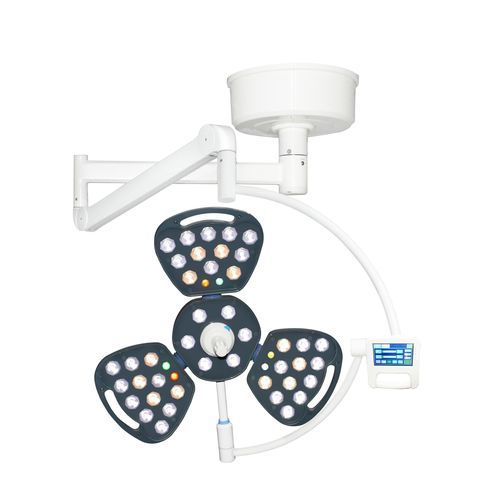

Mobile surgical light FY-3A
ceiling-mountedLED96

Mobile surgical light - FY-3A - Jiangsu Fuyou Medical - ceiling-mounted / LED / 96
Mobile surgical light - FY-3A - Jiangsu Fuyou Medical - ceiling-mounted / LED / 96
Add to favorites
Compare this product
Go to the Jiangsu Fuyou Medical website for more information

Characteristics

Configuration
ceiling-mounted, mobile
Light source
LED
Color rendering index
96
Options
with control panel
Other characteristics
homogeneous light, high intensity, shadowless
Power

48 W

Intensity at 1 m

Min.: 20,000 lx

Max.: 160,000 lx

Color temperature

Min.: 3,700 K

Max.: 5,000 K

Lifetime of bulbs

80,000 h, 100,000 h

Description

Short description
  • Model: FY-3A
  • Modular three-petal focusable lamp head with grip on each petal
  • Improved lamp control for precise brightness and color adjustment
  • Ceiling-mounted design with optional mobile floor-standing configuration


Key Features
  • Premium Cold Light Source: Equipped with imported OSRAM LED chips for energy-efficient operation and a service life ≥80,000 hours. Temperature rise around the operator's head <1℃. No infrared or ultraviolet radiation to avoid tissue heating. Stable color temperature with minimal light decay; soft, anti-glare illumination close to natural daylight. Dual-spectrum design with R9 (red) and R11 (green) LEDs: R9 improves rendering of blood and tissues for high-precision procedures; R11 balances ambient light to reduce visual fatigue during long operations.
  • Excellent Shadowless Performance: Ultra-thin modular three-petal head with multi-point light sources delivers uniform illuminance and flexible spot adjustment. Diamond-cut lens structure reduces light loss and improves utilization while diffusing harsh direct light to minimize glare.
  • Superior Deep Illumination: Computer-aided modular optical design provides effective illumination depth >1200 mm and maximum central illuminance up to 160,000 Lux. Adjustable color temperature 3700K–5000K to accurately restore tissue color for varied surgical needs.
  • Intelligent Control System: Microcomputer digital control with LCD touch screen for brightness and color temperature. Three preset modes: general, endoscopic and low-light. Automatic memory stores preferred settings. Independent multi-circuit design prevents a single LED fault from affecting overall operation.
  • Flexible Balanced Suspension Arm: Imported balance spring components ensure lightweight, precise positioning and wide adjustment range. Includes fatigue correction and fine positioning adjustment for long-term stability.
  • Mobile Base with Lockable Casters: Four-point support base with high-grade silent universal casters, each with independent brake for flexible movement, stable positioning and quiet operation (applies to mobile configuration).
  • Laminar Flow Optimized Lamp Head: Ultra-thin three-petal head with streamlined profile, maximum thickness ≤9 cm for optimal laminar airflow. Integrated petal handles; ABS housing. Detachable central handle autoclavable at 134℃.


Technical Specifications
  • Lamp Head Type: Three-petal
  • Adjustable Illuminance: 20,000–160,000 Lux
  • LED Quantity: 48 pcs
  • Light Source: Imported OSRAM LED
  • LED Lifespan: ≥80,000 hrs
  • Adjustable Color Temperature: 3700K–5000K
  • Color Rendering Index (Ra): ≥96
  • Focus Depth: 50–180 cm
  • Spot Diameter: 120–300 mm adjustable
  • Brightness Regulation: 1%–100% stepless
  • Power Consumption: 48 W
  • Operator Head Temp Rise: <1℃
  • Input Voltage: AC 100–240V 50/60Hz
  • Installation Type: Ceiling-mounted / Mobile floor-standing
  • Warranty: 2 Years
