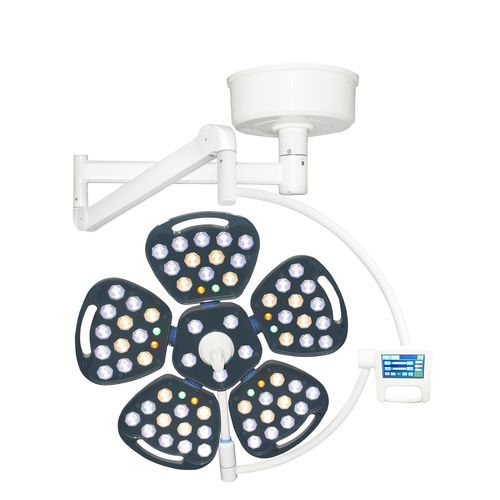

Ceiling-mounted surgical light FY-5A

LEDfor operating rooms97

OverviewFY-5A LED surgical light is engineered for clinical environments requiring stable, uniform illumination. The ceiling-mounted design features a focustable-petal lamp head with an individual grip on each petal and an optimized lamp control system. Low heat emission and adjustable color temperature improve visual comfort during general, plastic and outpatient surgical procedures.

Key Features

• Focustable-petal lamp head design with independent grip per petal
• Manual focus adjustment via central handle (120–300 mm)
• Optimized lamp control system for stable illumination
• 65 high-quality LED bulbs with long lifespan (≥80,000 hrs)
• Adjustable brightness 40,000–160,000 Lux
• Adjustable color temperature 3700K–5000K
• High color rendering index Ra 85–97 for accurate tissue color
• Deep illumination depth 500–1800 mm
• Low area temperature rise (<1℃) and slim ABS housing (≤10 cm)
• Ceiling-mounted installation, power AC100–240V 50/60Hz

Technical Specifications
Parameter: Specification
Lamp Head Design: Focustable-petal lamp head with grip on each petal
Control System: Optimized upgraded lamp control
Focus Adjustment: 120–300 mm, manual via central handle
Installation Type: Ceiling-mounted
Housing Material: ABS
Lamp Head Thickness: ≤10 cm
Lamp Head Diameter: 720 mm
Horizontal Lamp Head Reach: 800 + 900 + 720 mm
Light Source: LED (Lifespan ≥80,000 hrs)
LED Bulbs: 65 pcs
Brightness: 40,000–160,000 Lux, adjustable
Color Temperature: 3700K–5000K, adjustable
Ra Index: 85–97
Lighting Depth: 500–1800 mm
Area Temperature Rise: <1℃
Power Consumption: 65W
Power Input: AC100–240V 50/60Hz
Warranty: 2 Years

Model Summary

• Model: FY-5A
• Lamp head: Focustable-petal with individual grips
• LED bulbs: 65 pcs, lifespan ≥80,000 hrs
• Brightness: 40,000–160,000 Lux (adjustable)
• Color temperature: 3700K–5000K (adjustable)
• Color rendering index (Ra): 85–97
• Lighting depth: 500–1800 mm
• Focus range: 120–300 mm (manual)
• Power consumption: 65W; Input AC100–240V 50/60Hz
• Housing: ABS; Lamp head thickness ≤10 cm; Diameter 720 mm
• Installation: Ceiling-mounted
• Warranty: 2 Years
