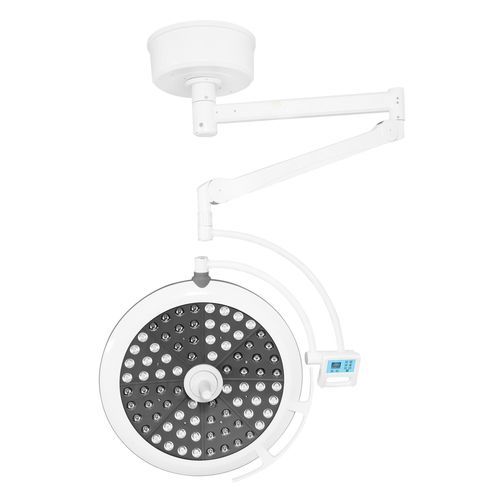

Ceiling-mounted surgical light FY-LED700

LEDfor operating rooms97

Description
The FY-LED700 is a ceiling-mounted single-dome LED surgical light designed for consistent, deep and uniform illumination in operating rooms. It provides adjustable color temperature and high color rendering to support accurate tissue visualization while maintaining low heat emission and long LED lifetime. Suitable for general surgery, plastic surgery and outpatient clinical procedures.

Key Features

• Smart touch control interface
• Manual adjustable focus via central handle (120–300 mm)
• R9 red and R11 green special color rendering, 4-step adjustment each
• 360° unlimited rotation for flexible positioning
• 80 individual LEDs with optical lenses
• 40,000–160,000 Lux stepless adjustable brightness
• Adjustable color temperature 3700K–5000K
• High color rendering index Ra >97
• Ultra-deep lighting depth: 500–1800 mm
• Low area temperature rise <1℃
• Aluminum alloy housing, lamp head thickness ≤9.5 cm
• Long LED lifespan ≥80,000 hours
• Ceiling-mounted installation

Technical Specifications
Control Type: Smart Touch Control
Focus Adjustment: 120–300 mm, manual adjustable by central handle
Installation Type: Ceiling-mounted
Housing Material: Aluminum alloy
Lamp Head Thickness: ≤9.5 cm
Lamp Head Diameter: 700 mm
Horizontal Lamp Head Reach: 800 + 900 + 700 mm
Light Source: LED (Lifespan ≥80,000 hrs)
LED Count: 80 pcs
Optical Lens: Individual lens over each LED
Brightness: 40,000–160,000 Lux, adjustable
Color Temperature: 3700K–5000K, adjustable
CRI Ra: >97
Special Color Rendering: R9 (red) & R11 (green), 4-step adjustable each
Lighting Depth: 500–1800 mm
Area Temperature Rise: <1℃
Power Consumption: 84 W
Power Input: AC100–240V 50/60Hz
Warranty: 2 years

caractéristiques / spécifications techniques

• Model: FY-LED700
• Control: Smart Touch
• Focus range: 120–300 mm (manual)
• Brightness: 40,000–160,000 Lux (adjustable)
• Color temperature: 3700K–5000K (adjustable)
• CRI Ra: >97
• Special rendering: R9 and R11 adjustable (4 steps each)
• LED count: 80 pcs with individual optical lenses
• Lighting depth: 500–1800 mm
• Power: 84 W, AC100–240V 50/60Hz
• Housing: Aluminum alloy, lamp head thickness ≤9.5 cm
• Mounting: Ceiling-mounted
• Warranty: 2 years
