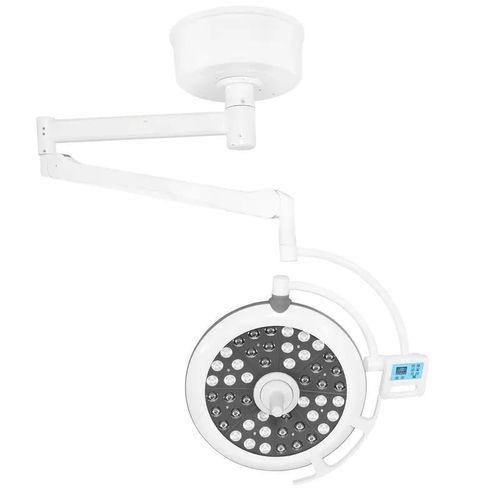

Ceiling-mounted surgical light FY-LED500

LEDfor operating rooms97

Description
The FY-LED500 is a ceiling-mounted, single-dome LED operating light designed for precision clinical applications. It integrates a smart touch control interface and manual focus adjustment to provide consistent, deep, and uniform illumination with excellent color rendering for accurate tissue visualization. The low-heat, low-power design improves comfort for surgical teams and patients while delivering long operational life.

Key Features

• Smart touch control interface
• Manual adjustable focus via central handle (120–300 mm)
• R9 red light 4-step adjustable
• R11 green light 4-step adjustable
• 360° unlimited rotation
• 60 high-quality LED bulbs each with an individual optical lens
• Brightness adjustable 40,000–160,000 Lux
• Color temperature adjustable 3700K–5000K
• High color rendering index Ra >97 for real tissue color restoration
• Ultra-deep lighting depth 500–1800 mm
• Low heat emission (area temperature rise <1℃)
• Aluminum alloy housing, lamp-head thickness ≤9.5 cm
• Long LED lifespan ≥80,000 hours
• Ceiling-mounted installation

Technical Specifications

• Model: FY-LED500
• Light source: LED, 60 pcs, lifespan ≥80,000 hrs
• Brightness: 40,000–160,000 Lux (adjustable)
• Color temperature: 3700K–5000K (adjustable)
• Color rendering index: Ra >97; special R9 (red) & R11 (green) adjustable (4 steps each)
• Focus adjustment: 120–300 mm (manual, central handle)
• Lighting depth: 500–1800 mm
• Housing: Aluminum alloy; lamp-head thickness ≤9.5 cm; diameter 500 mm
• Power consumption / input: 54W / AC100-240V 50/60Hz (switch power supply)
• Installation: Ceiling-mounted
• Area temperature rise: <1℃
• Warranty: 2 Years
