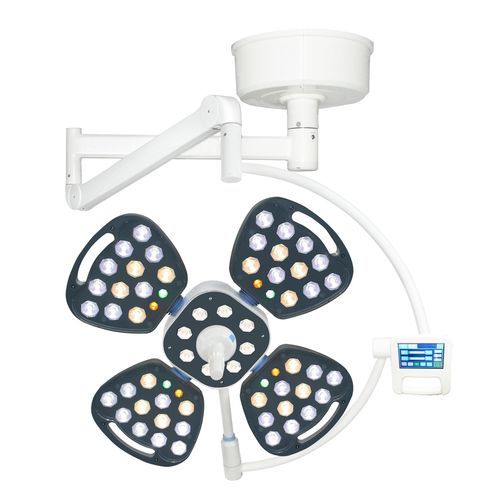

Ceiling-mounted surgical light FY-4A

LEDminor surgeryfor operating rooms

Overview
The FY-4A ceiling-mounted LED shadowless surgical light delivers uniform, adjustable illumination for operating rooms. Its focustable-petal lamp head and upgraded control system enable precise light field shaping with low heat emission and long LED life, suitable for general, plastic and outpatient surgical procedures.

Clinical applications

• General surgery
• Plastic and reconstructive surgery
• Outpatient and minor surgical procedures
• Examination and procedure lighting in clinical settings

Key Features

• Focustable-petal lamp head with independent grip on each petal for flexible adjustment
• Manual central-handle focus adjustment (120–300 mm)
• Optimized lamp control system with stable, uniform illumination
• 56 high-quality LED modules with lifespan ≥80,000 hours
• Adjustable brightness 40,000–160,000 Lux and color temperature 3700K–5000K
• High color rendering Ra 85–97 for accurate tissue visualization
• Ultra-deep lighting depth 500–1800 mm and low area temperature rise <1℃
• Slim ABS lamp head (≤10 cm) for compact ceiling installation

Technical Specifications

• Model: FY-4A
• Lamp Head Design: Focustable-petal lamp head with grip on each petal
• Control System: Optimized upgraded lamp control
• Focus Adjustment: 120–300 mm, manual by central handle
• Installation Type: Ceiling-mounted
• Housing Material: ABS, lamp head thickness ≤10 cm
• Lamp Head Diameter: 720 mm
• Horizontal Reach: 800 + 900 + 720 mm
• Light Source: LED, lifespan ≥80,000 hours
• LED Modules: 56 pcs
• Brightness: 40,000–160,000 Lux (adjustable)
• Color Temperature: 3700K–5000K (adjustable)
• Color Rendering Index (Ra): 85–97
• Lighting Depth: 500–1800 mm
• Area Temperature Rise: <1℃
• Power Consumption: 56 W
• Power Input: AC100–240V 50/60Hz
• Warranty: 2 Years

Installation & Warranty

• Ceiling-mounted installation by qualified technicians recommended
• Includes 2-year warranty; maintenance and spare parts available
