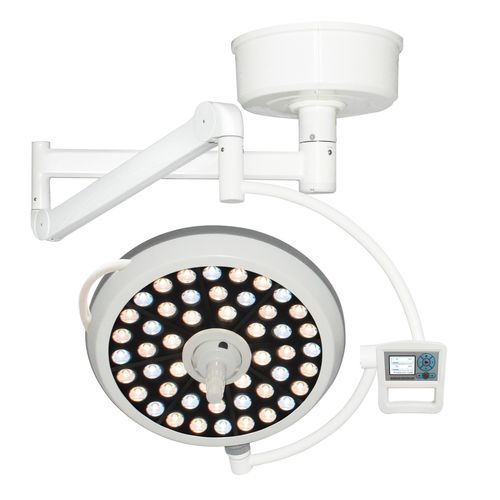

Ceiling-mounted surgical light FY-500B

LEDdentalminor surgery

Product Overview
The FY-500B is a ceiling-mounted single‑head LED surgical light designed for outpatient clinics, minor operating rooms and examination departments. It provides adjustable shadowless illumination with an aluminium alloy lamp head and manual focus control to support precise visualisation during short procedures and examinations.

Key Features

• Ceiling-mounted installation to optimise floor space in clinical environments
• Single regular lamp head with aluminium alloy housing for efficient heat dissipation
• Manual focus adjustment via central rotating handle for focused illumination
• Stepless adjustable brightness and color temperature to match different clinical needs (3700K–5000K)
• Low operative field temperature rise ＜1℃ to minimise tissue heating
• Long‑life LED source ≥80,000 h for reduced maintenance and stable light output

Technical Specifications

• Model : FY-500B (Ceiling-mounted)
• Mounting Type : Ceiling-mounted, Single Regular Lamp Head
• Housing Material : Aluminum Alloy
• Lamp Head Thickness : ≤15 cm
• Lamp Head Diameter : 500 mm
• Horizontal Lamp Head Reach : 800 + 900 + 500 mm
• Light Source : LED, Lifespan ≥80,000 h
• LED Bulb Quantity : 40 pcs
• Brightness : 40,000–160,000 Lux, adjustable
• Focus Range : 120–300 mm, manually adjustable
• Color Temperature : 3700K–5000K, adjustable
• Ra Index : 85–95
• Lighting Depth : 500–1800 mm
• Area Temperature Rise : ＜1℃
• Power Consumption : 40 W
• Power Input : AC100–240V 50/60Hz, with switching power supply
• Warranty : 2 Years

Clinical Applications

• Outpatient examination and treatment rooms
• Minor surgery and procedure rooms
• ENT, dental clinics and outpatient surgical units requiring a compact ceiling light

Installation & Maintenance
Designed for ceiling installation with a compact lamp head (≤15 cm), the FY-500B saves floor space and permits flexible positioning. Regular cleaning of the lamp head surface and periodic inspection of the mounting arm and electrical connections are recommended to maintain optimal performance.

Warranty
Standard 2-year warranty covering manufacturing defects. For service, follow local regulations and the supplier's maintenance instructions.
