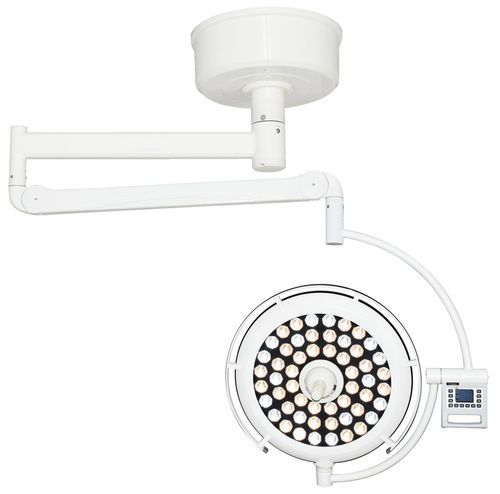

Ceiling-mounted surgical light FY-500A

LEDminor surgery97

Product overview
The FY-500A ceiling-mounted LED surgical light features an ultra-thin aluminum-alloy lamp head and imported German Osram LEDs. Each LED is paired with an independent dia-cut optical lens to deliver uniform shadowless illumination. The ergonomic grip ring and optimized control layout enable flexible positioning and manual focusing to meet lighting needs for general surgery, outpatient procedures and minor operations.

Key features

• Ultra-thin lamp head with aluminum-alloy housing
• Independent dia-cut optical lens for each LED for even light distribution
• Ergonomic grip ring for easy angle adjustment
• Optimized control layout for straightforward operation
• Central rotary handle for manual focus adjustment
• Adjustable brightness and color temperature for varied clinical scenarios
• Ultra-low local temperature rise <1℃ to reduce wound dehydration
• Imported German Osram LEDs, service life ≥80,000 hours

Technical specifications

• Model: FY-500A
• Lamp head style: Single ultra-thin lamp head
• Housing material: Aluminum alloy
• Lamp head thickness: ≤8 cm
• Lamp head diameter: 500 mm
• Horizontal arm reach: 800 + 900 + 500 mm
• Light source: LED, lifespan ≥80,000 hrs
• LED count: 54 pcs, imported German Osram
• Optical lens: Dia-cut design for each LED
• Brightness: 40,000–160,000 Lux, adjustable
• Focus range: 120–300 mm, manually adjustable
• Color temperature: 3700K–5000K, adjustable
• Ra index: 85–97
• Lighting depth: 500–1800 mm
• Local area temperature rise: <1℃
• Power consumption: 54 W
• Power input: AC100–240V 50/60Hz (switching power supply)
• Mounting: Ceiling-mounted
• Warranty: 2 years
