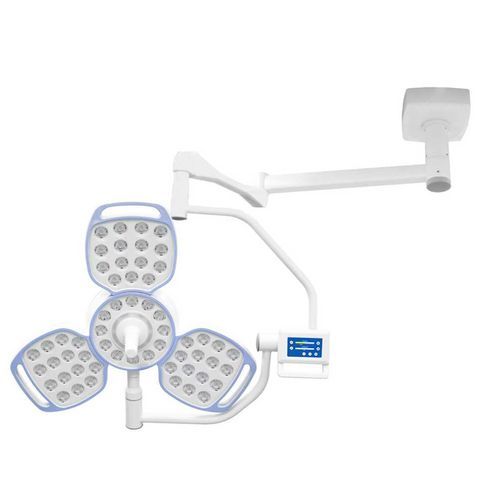

Ceiling-mounted surgical light Geeta500C

LEDfor operating rooms97

Product overview
The Geeta500C ceiling-mounted surgical light integrates high color-rendering Osram LEDs with electric focus and LCD touch control to support precise visualization in operating rooms. Designed for deep, uniform illumination with low heat emission and compact lamp-head geometry for improved access to the surgical field.

Clinical benefits

• High color fidelity (Ra ≥97) and enhanced R9/R13/R15 for accurate tissue differentiation.
• Deep, uniform lighting (lighting depth ≥1300 mm) for consistent illumination across the surgical site.
• Low thermal output (<0.5℃ area temperature rise) to maintain patient and staff comfort.
• Adjustable focus and color temperature options to match procedures and surgeon preference.
• Long LED lifespan (≥60,000 hours) and compact lamp-head (≤6.5 cm) to minimize maintenance and obstruction.

Key features

• LCD touch control interface
• Electric adjustable focus (button control)
• 57 Osram LED bulbs with individual optical lenses
• Brightness 40,000–160,000 lux with 20-step adjustment
• Color temperature fixed 4500K (adjustable option available)
• High color rendering index Ra ≥97; R9/R13/R15 ≥95
• Ultra-deep lighting depth ≥1300 mm
• Low heat emission (area temperature rise <0.5℃)
• ABS housing with slim lamp-head thickness ≤6.5 cm
• Power consumption 50 W; input AC100–240V 50/60 Hz

Technical specifications

• Model: Geeta500C
• Control type: LCD touch control
• Focus adjustment: Electric adjust focus (18–240 mm)
• Housing material: ABS
• Lamp head thickness: ≤6.5 cm
• Lamp head diameter: 740 mm
• Light source: LED (lifespan ≥60,000 hours)
• Number of bulbs: 57 pcs (Osram)
• Optical lens: Individual lens per bulb
• Brightness: 40,000–160,000 lux (20-step)
• Focus range: 18–240 mm (button control)
• Color temperature: Fixed 4500 K (adjustable optional)
• Ra index: ≥97
• R9/R13/R15: ≥95
• Lighting depth (L1+L2): ≥1300 mm
• Area temperature rise: <0.5℃
• Power consumption: 50 W
• Power input: AC100–240V 50/60 Hz
• Arm reach: 800 + 900 mm
• Warranty: 2 years
