Orthopedic operating table FY-9000radiologyelectricadjustable height
Add to favorites
Compare this product
Characteristics
- Applications
- orthopedic, radiology
- Operation
- electric
- Features
- adjustable height, radiolucent
- Number of sections
- 1-section
- Material
- carbon fiber
- Total length
Max.: 250 cm
(98.4 in)Min.: 249 cm
(98 in)- Total width
Max.: 69.5 cm
(27.4 in)Min.: 68.5 cm
(27 in)- Max supported weight
240 kg
(529.1 lb)
Description
Overview
Technical specifications
Movement and controls
Clinical applications
Compatibility and options

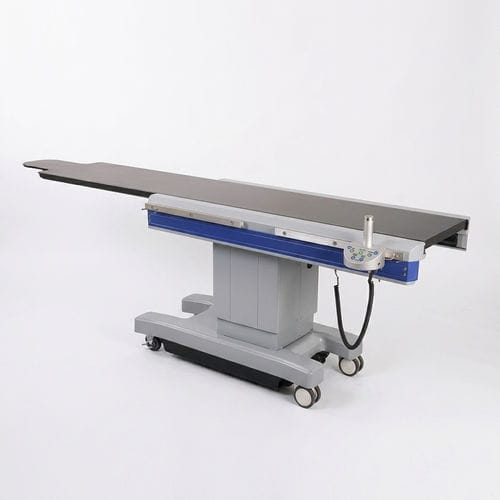

- Electric operating table FY-9000 with integral carbon fiber radiolucent tabletop designed for imaging-guided procedures and general surgical use.
Technical specifications
- Tabletop appearance: Integral
- Tabletop material: Carbon fiber
- Overall length: 2500 ± 10 mm
- Radiolucent length: 1750 ± 10 mm
- Metal-free examination length: 1200 ± 5 mm
- Overall width (including side rails): 690 ± 5 mm
- Radiolucent width: 465 mm
- Thickness: 35 mm
- X-ray absorption coefficient (Aluminum equivalent): ≤ 0.73 mmAL
- Maximum load capacity: 240 kg
Movement and controls
- Lateral movement: Manual; travel range 240 ± 20 mm; electromagnetic locking device
- Longitudinal movement: Manual; travel range 770 ± 20 mm; electromagnetic locking device
- Vertical movement: Electric; travel range 280 ± 20 mm; height from floor 770 ± 20 mm to 1050 ± 20 mm; average speed 8 mm/s
- Tabletop control: Controller for tabletop elevation, horizontal movement and stabilization
Clinical applications
- Compatible with intraoperative imaging (C-arm/fluoroscopy) due to radiolucent tabletop
- Suitable for general surgery, orthopedics, trauma and hybrid operating rooms
- Metal-free examination zone enables unobstructed imaging of targeted anatomy
Compatibility and options
- Overall width includes side rails; compatible with standard OR accessories and mounting interfaces
- Optional configurations and accessories available from supplier to adapt to specific clinical workflows
