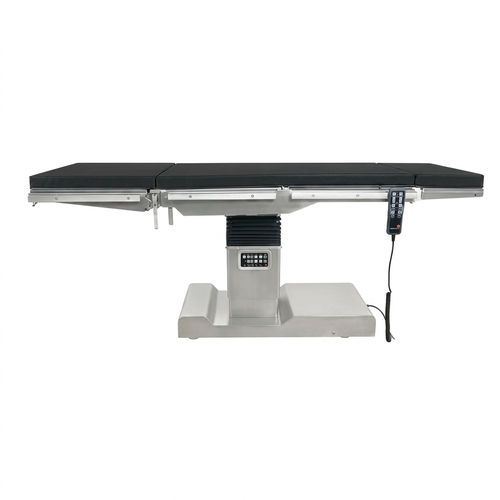

Universal operating table FY-500A (C)electricadjustable heighttilting
Add to favorites
Compare this product
Characteristics
- Applications
- universal
- Operation
- electric
- Features
- adjustable height, tilting, reclining
- Components
- with sliding tabletop
- Number of sections
- 3-section
- Total length
204 cm
(80.3 in)- Total width
52 cm
(20.5 in)- Max supported weight
300 kg
(661.4 lb)
Description
Description
Standard Functional Configuration
Technical specifications
- Electric operating table for hospital operating rooms, model FY-500A(C), providing multiple surgical positions and a maximum load capacity of 300 kg.
- Compact tabletop: 2040 mm (L) × 520 mm (W) (excluding side rails); minimum tabletop height 670±20 mm (without mattress).
- Core movements include vertical lift, head/back/leg adjustments, head-foot tilt, lateral tilt and longitudinal translation to facilitate positioning during procedures.
Standard Functional Configuration
- Manual lumbar bridge
- Electric brake
- Hand controller + bed controller
- One-key reset function
- Flexion and retroflexion functions
- Head-to-tail interchangeable
Technical specifications
- Tabletop dimensions: 2040 mm (L) × 520 mm (W) (excluding side rails)
- Minimum tabletop height: 670±20 mm (excluding mattress)
- Lifting stroke: 300±20 mm
- Head section adjustment: ≥ 50° upward / 90° downward ±2° (manual)
- Back section adjustment: ≥ 70° upward / 35° downward ±2°
- Leg section adjustment: ≥ 25° upward / 90° downward / 90° abduction (manual)
- Head–foot tilt angle: ≥ 25° ±2°
- Lateral tilt angle: ≥ 25° ±2°
- Translation stroke: ≥ 350±20 mm
- Maximum load capacity: 300 kg
- Brake: electric
- Controls: hand controller and bed controller
- Additional functions: manual lumbar bridge, one-key reset, flexion/retroflexion, head-to-tail interchangeability
