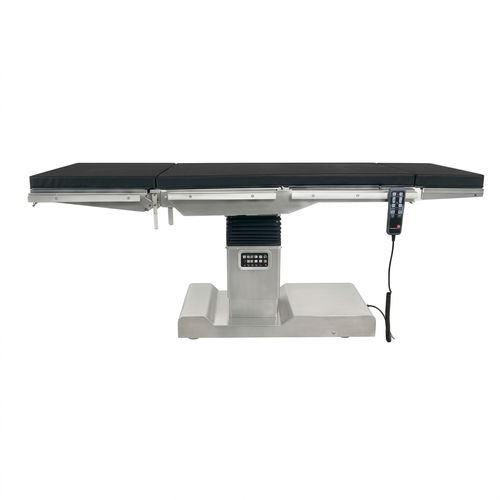

Universal operating table FY-500Aelectricadjustable heighttilting
Add to favorites
Compare this product
Characteristics
- Applications
- universal
- Operation
- electric
- Features
- adjustable height, tilting, reclining
- Number of sections
- 3-section
- Total length
204 cm
(80.3 in)- Total width
52 cm
(20.5 in)- Max supported weight
300 kg
(661.4 lb)
Description
Overview
Standard functions
Technical specifications
Safety & control
- Electric operating table designed for general surgical procedures and multidisciplinary use
- Tabletop dimensions: 2040 mm (L) × 520 mm (W); minimum tabletop height: 670 ± 20 mm (without mattress)
- Maximum load capacity: 300 kg; translation stroke ≥ 300 ± 20 mm; electric lumbar bridge travel 120 mm
Standard functions
- Electric lumbar bridge
- Electric brake
- Hand control + bed controller
- One-touch reset function
- Flexion and extension functions
- Head-to-tail interchangeability
Technical specifications
- Model: FY-500A
- Tabletop dimensions: 2040 mm (L) × 520 mm (W)
- Minimum tabletop height: 670 ± 20 mm (without mattress)
- Lifting stroke (electric): 250 ± 20 mm
- Headboard: ≥ 20° up; 90° ± 2° down (manual)
- Backboard: ≥ 75° up; 30° ± 2° down (electric)
- Leg board: ≥ 90° upward folding; 90° horizontal abduction (manual)
- Head-foot tilt: ≥ 31° ± 2°
- Lateral tilt: ≥ 21° ± 2°
- Translation stroke: ≥ 300 ± 20 mm
- Electric lumbar bridge travel: 120 mm
- Maximum load capacity: 300 kg
- Control: hand control plus bed controller
- Safety/operation features: electric brake, one-touch reset, flexion/extension, head-to-tail interchangeability
Safety & control
- Dual control modes for redundancy: pendant hand control and centralized bed controller
- Electric brake and one-touch reset enhance operational safety and workflow efficiency
