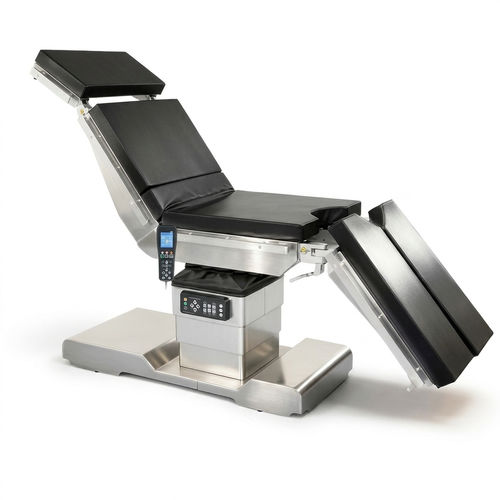

Universal operating table FY-3 700 (A)electrichydraulicbariatric
Add to favorites
Compare this product
Characteristics
- Applications
- universal
- Operation
- electric, hydraulic
- Patient type
- bariatric
- Features
- adjustable height, tilting, mobile, radiolucent, reclining
- Number of sections
- 5-section
- Material
- carbon fiber
- Total length
217 cm
(85.4 in)- Total width
52 cm
(20.5 in)- Max supported weight
560 kg
(1,234.6 lb)
Description
Description
Standard Configuration
Specifications / Technical Data
- Tabletop dimensions: 2170 × 520 mm
- Minimum tabletop height: 600–960 mm (excluding table pad)
- Lifting stroke: ≥ 360 mm
- Headboard adjustment: ≥ 60° upward / 90° downward (manual)
- Backboard adjustment: ≥ 80° upward / 40° downward
- Leg board adjustment: ≥ 35° upward / 90° downward / 90° abduction (manual)
- Head-foot tilt angle: ≥ 36° ±2°
- Lateral tilt angle: ≥ 26° ±2°
- Translation stroke: ≥ 350 mm
- Lumbar bridge: ≥ 120 mm (manual)
- Maximum load capacity: 560 kg
Standard Configuration
- Carbon fiber tabletop
- LCD hand controller + bed controller
- One-click plug-in connector
- 4-point electric brake
- One-key reset function
- One-key flexion and retroflexion functions
- 8 memory positions
- Head-to-tail interchangeable
- Manual lumbar bridge
Specifications / Technical Data
- Tabletop dimensions: 2170 × 520 mm
- Height range (min): 600–960 mm (excluding table pad)
- Lifting stroke: ≥ 360 mm
- Headboard: ≥ 60° upward / 90° downward (manual)
- Backboard: ≥ 80° upward / 40° downward
- Leg board: ≥ 35° upward / 90° downward / 90° abduction (manual)
- Head-foot tilt angle: ≥ 36° ±2°
- Lateral tilt angle: ≥ 26° ±2°
- Translation stroke: ≥ 350 mm
- Lumbar bridge travel: ≥ 120 mm (manual)
- Maximum load capacity: 560 kg
- Tabletop material: Carbon fiber
- Controls: LCD hand controller + bed controller
- Brakes: 4-point electric brake
- Special functions: One-key reset, one-key flexion/retroflexion, 8 memory positions, head-to-tail interchangeability
Catalogs
No catalogs are available for this product.
See all of Jiangsu Fuyou Medical‘s catalogsOther Jiangsu Fuyou Medical products
Operating Table (Electric)
