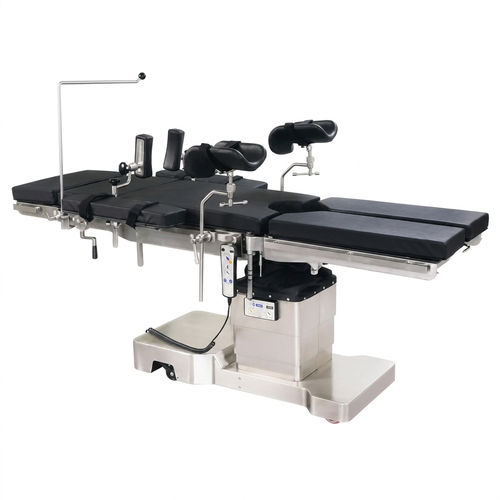

Universal operating table FY-3radiologyelectrichydraulic
Add to favorites
Compare this product
Characteristics
- Applications
- universal, radiology
- Operation
- electric, hydraulic
- Features
- adjustable height, tilting, radiolucent
- Components
- with legrest
- Number of sections
- 6-section
- Material
- stainless steel
- Total length
Max.: 208 cm
(81.9 in)Min.: 206 cm
(81.1 in)- Total width
Max.: 53 cm
(20.9 in)Min.: 51 cm
(20.1 in)
Description
Description
Product Features
Technical specifications
- Electro-hydraulic operating table designed for general and specialist surgeries, compatible with C-arm fluoroscopy.
- Tabletop dimensions: (2070 × 520) ± 10 mm.
- Height range (excluding mattress): 540 ± 20 mm to 1040 ± 20 mm.
- Head-foot tilt: ≥ 30° forward, ≥ 30° backward; lateral tilt: ≥ 20° left/right.
- Headboard, backboard and leg board adjustable to support a wide range of positions; translation stroke ≥ 300 mm; lumbar bridge stroke ≥ 140 mm.
- 6 cm double-layer memory decompression mattress with anti-static function.
Product Features
- Electro-hydraulic transmission for precise positioning, smooth movement and reliable long-term performance.
- Radiolucent tabletop with horizontal translation to facilitate accurate C-arm X-ray imaging and intraoperative fluoroscopy.
- Shell and side rails in 304 stainless steel for easy cleaning, acid/alkali and corrosion resistance.
- Optimized base design to maximize C-arm access while ensuring table balance and stability.
Technical specifications
- Model designation: FY-3
- Tabletop dimensions: (2070 × 520) ± 10 mm
- Height range (excluding mattress): 540 ± 20 mm to 1040 ± 20 mm
- Head-foot tilt: ≥ 30° forward, ≥ 30° backward
- Lateral tilt: ≥ 20° left, ≥ 20° right
- Headboard adjustment: ≥ 50° up, ≥ 90° down
- Backboard adjustment: ≥ 80° up, ≥ 40° down
- Leg board adjustment: ≥ 10° up, ≥ 90° down, ≥ 90° abduction
- Translation stroke: ≥ 300 mm
- Lumbar bridge stroke: ≥ 140 mm
- Transmission: Electro-hydraulic
- Mattress: 6 cm double-layer memory decompression mattress with anti-static function
- Material (shell & side rails): 304 stainless steel (acid/alkali and corrosion resistant)
- Tabletop: Radiolucent material, horizontal movement suitable for C-arm fluoroscopy
- Base design: Optimized for C-arm access, balance and stability ensured
