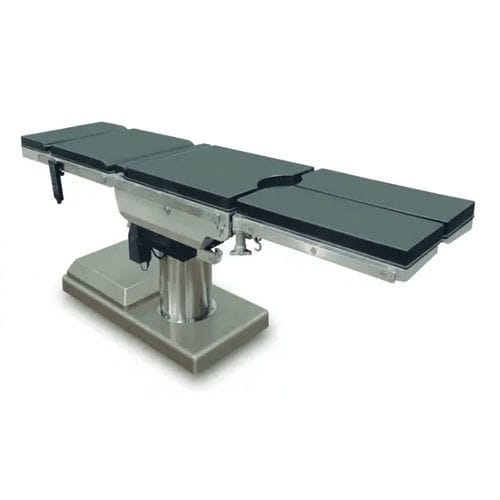

Universal operating table FY-1100electrichydraulicbariatric
Add to favorites
Compare this product
Characteristics
- Applications
- universal
- Operation
- electric, hydraulic
- Patient type
- bariatric
- Features
- adjustable height, tilting, reclining
- Number of sections
- 4-section
- Total length
214 cm
(84.3 in)- Total width
55 cm
(21.7 in)- Max supported weight
560 kg
(1,234.6 lb)
Description
Description
Standard Configuration
Technical specifications
- Tabletop dimensions: 2140 × 550 mm
- Minimum tabletop height: 670–1020 mm (excluding table pad)
- Lifting stroke: 350 mm
- Tabletop rotation: 180°
- Headboard adjustment: 65° upward / 85° downward
- Backboard adjustment: 90° upward / 39° downward
- Leg board adjustment: 20° upward / 90° downward / 90° abduction
- Head-foot tilt angle: ≥ 30° ±2°
- Lateral tilt angle: ≥ 20° ±2°
- Translation stroke: ≥ 350 mm
- Lumbar bridge: ≥ 120 mm
- Maximum load capacity: 560 kg
Standard Configuration
- Antibacterial bed plate
- LCD hand controller + bed controller
- Stainless steel connector
- Electric brake
- One-key reset function
- One-key flexion and retroflexion functions
- 8 memory positions
- Head-to-tail interchangeable
- Manual lumbar bridge
- 180° tabletop rotation
Technical specifications
- Model: FY-1100
- Tabletop size: 2140 × 550 mm
- Height range (tabletop, excluding pad): 670–1020 mm
- Lifting stroke: 350 mm
- Rotation: 180°
- Headboard movement: +65° / -85°
- Backboard movement: +90° / -39°
- Leg board movement: +20° / -90°; abduction 90°
- Head-foot tilt: ≥ 30° ±2°
- Lateral tilt: ≥ 20° ±2°
- Translation stroke: ≥ 350 mm
- Lumbar bridge rise: ≥ 120 mm
- Maximum load capacity: 560 kg
- Standard features: antibacterial bed plate, LCD hand controller + bed controller, stainless steel connector, electric brake, one-key reset, one-key flexion/retroflexion, 8 memory positions, head-to-tail interchangeability, manual lumbar bridge
