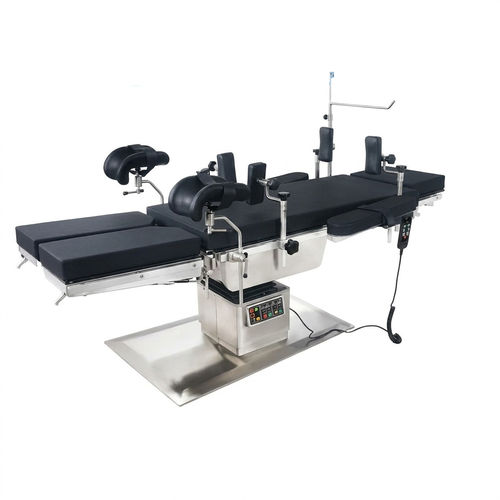

Universal operating table FY-500A (F)electricbariatricadjustable height
Add to favorites
Compare this product
Characteristics
- Applications
- universal
- Operation
- electric
- Patient type
- bariatric
- Features
- adjustable height, tilting, mobile, reclining
- Number of sections
- 3-section
- Total length
207 cm
(81.5 in)- Total width
55 cm
(21.7 in)- Max supported weight
460 kg
(1,014.1 lb)
Description
Description
Standard Functional Configuration
Technical specifications
- Tabletop dimensions: 2070mm (L) × 550mm (W) (excluding side rails)
- Minimum tabletop height: 670mm (excluding mattress)
- Lifting stroke: (300±20) mm
- Headboard adjustment: ≥ 40° upward / 90° downward ±2° (manual)
- Backboard adjustment: ≥ 75° upward / 35° downward ±2°
- Leg board adjustment: ≥ 20° upward / 90° downward / 90° abduction (manual)
- Head-foot tilt angle: ≥ 25° ±2°
- Lateral tilt angle: ≥ 22° ±2°
- Translation stroke: ≥ 350±20mm
- Lumbar bridge: 120mm (manual)
- Maximum load capacity: 460kg
Standard Functional Configuration
- Manual lumbar bridge
- Hand controller + bed controller
- Includes mobile trolley
- One-key reset function
- Flexion and retroflexion functions
- Head-to-tail interchangeable
- Double-fold headboard
Technical specifications
- Tabletop dimensions: 2070mm × 550mm (excluding side rails)
- Minimum tabletop height: 670mm (excluding mattress)
- Lifting stroke: (300±20) mm
- Headboard adjustment: ≥ 40° up / 90° down ±2° (manual)
- Backboard adjustment: ≥ 75° up / 35° down ±2°
- Leg board adjustment: ≥ 20° up / 90° down / 90° abduction (manual)
- Head-foot tilt: ≥ 25° ±2°
- Lateral tilt: ≥ 22° ±2°
- Translation stroke: ≥ 350±20mm
- Lumbar bridge: 120mm (manual)
- Maximum load capacity: 460kg
