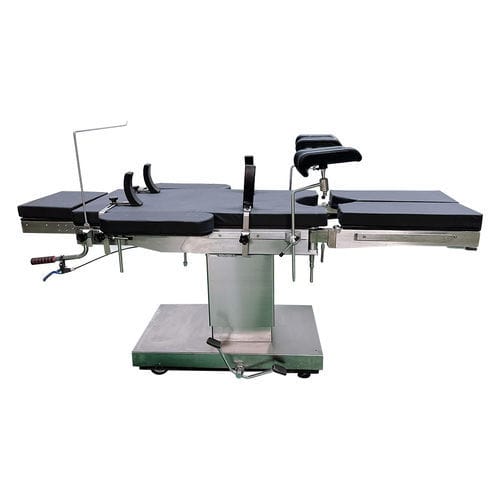

Universal operating table FY503-3(II)

urologyorthopedicgynecological

Overview
Table for general surgery, urology, gynaecology, orthopaedics and renal procedures. Manual hydraulic height adjustment via foot pedal; guide rails at both ends for accessory mounting; double-layer table panel for X-ray cassette insertion.

Key features

• Manual hydraulic operating table with foot-pedal height control.
• Table panel frame with spray-coated finish; column and base in #304 stainless steel.
• Guide rails at both ends for mounting accessories and positioning supports.
• Back section adjusted by handwheel located under the head plate.
• Lateral tilt and Trendelenburg adjustments via hand crank under the head plate.
• Kidney bridge elevation adjusted by hand crank at the table side (0–120 mm).
• Double-layer panel design allows placement of X-ray cassette for intraoperative imaging.

Technical data
Dimensions: 2100 × 480 mm
Height adjustment: 800–1050 mm (manual hydraulic, foot pedal)
Trendelenburg: ±25°
Lateral tilt: ±20°
Back section: +80° / -20° (handwheel under head plate)
Head board: +45° / -90°
Leg board: -90°
Built-in kidney elevator travel: 0–120 mm (hand crank)
Table panel: double-layer for cassette placement (X-ray)
Frame finish: spray-coated table panel frame
Column & base: #304 stainless steel
Accessory mounting: guide rails at both ends

Standard accessories

• Shoulder supports: 2 pcs
• Waist supports: 2 pcs
• Arm supports: 2 pcs
• Leg supports: 2 pcs
• Anesthetic screen frame: 1 pc
• Leg plates: 2 pcs
• Mattress: 1 pc
