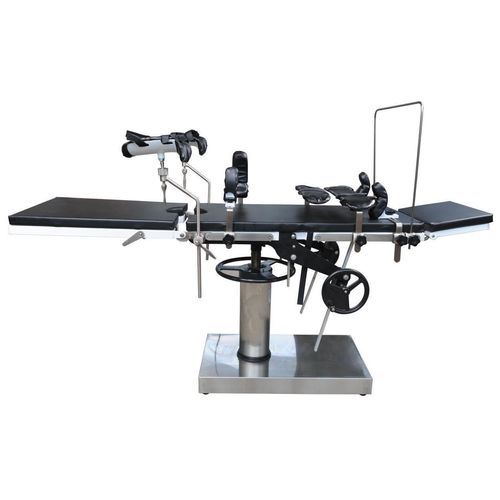

Universal operating table FY503-1

mechanicaladjustable heightwith legrest

Overview

• Manual operating table with handwheel height adjustment for surgical positioning.
• Table panel frame finished with spray coating; column and base manufactured in #304 stainless steel.
• Guide rails at both ends for mounting surgical accessories and supports.
• Back section adjusted via handwheel located under the head section.
• Kidney bridge elevation operated by a hand crank at the table side.

Technical data
Dimensions: 2000×480 mm
Height adjustment: 720-960 mm (handwheel)
Back section adjustment: +75° / -20° (manual)
Head board adjustment: +60° / -90°
Leg board adjustment: -90°
Built-in kidney elevator: 0-120 mm (hand crank)

Specifications

• Model: FY503-1
• Type: Manual operating table
• Table dimensions: 2000×480 mm
• Height adjustment range: 720-960 mm (handwheel)
• Back section adjustment: +75° / -20° (manual)
• Head board adjustment: +60° / -90°
• Leg board adjustment: -90°
• Built-in kidney elevator: 0-120 mm (hand crank)
• Frame finish: spray-coated
• Column and base material: #304 stainless steel
• Accessory guide rails at both ends for instruments and attachments
