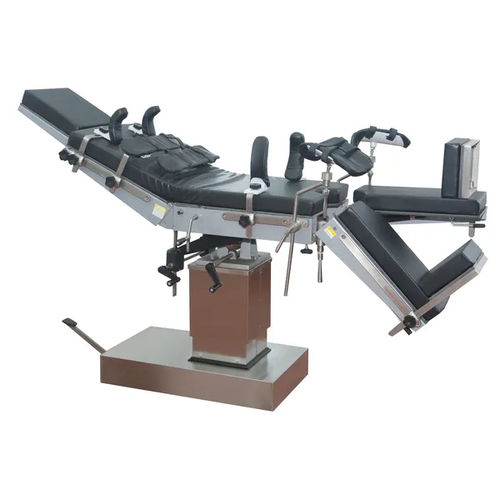

Radiology operating table FY503-5hydraulictiltingradiolucent
Add to favorites
Compare this product
Characteristics
- Applications
- radiology
- Operation
- hydraulic
- Features
- adjustable height, tilting, radiolucent
- Components
- with legrest, with armrest, with headrest
- Number of sections
- 5-section
- Material
- stainless steel
- Total length
210 cm
(82.7 in)- Total width
50 cm
(19.7 in)
Description
Overview
Technical data
Standard accessories
Specifications
- Manual hydraulic operating table with foot-pedal height adjustment.
- Table panel frame is spray-coated; column and base are #304 stainless steel.
- Guide rails at both ends support accessories.
- Back section adjusted by air spring located under the head plate.
- Trendelenburg and lateral tilt adjusted by hand crank at the table side.
- Kidney bridge elevation adjusted by hand crank at the table side.
- Table panel made of combet material, suitable for X‑ray examinations.
- Longitudinal movement of 300 mm, adjusted by hand crank.
Technical data
- Dimensions: 2100×500 mm
- Height adjustment: 750-1000 mm
- Trendelenburg: ±20°
- Lateral tilt: ±18°
- Back section adjustment: +55° / -14°
- Head board adjustment: +60° / -90°
- Leg board adjustment: -90°
- Built-in kidney elevator: 0-120 mm
- Longitudinal movement: 300 mm
Standard accessories
- Shoulder supports: 2 pcs
- Waist supports: 2 pcs
- Arm supports: 2 pcs
- Leg supports: 2 pcs
- Anesthetic screen frame: 1 pc
- Leg plates: 2 pcs
- Mattress: 1 pc
Specifications
- Product type: Manual hydraulic operating table
- Model: FY503-5
- Table panel frame: spray-coated
- Column and base material: #304 stainless steel
- Table panel material: combet (suitable for X‑ray examination)
- Height adjustment method: foot pedal (manual hydraulic)
- Height adjustment range: 750-1000 mm
- Trendelenburg adjustment: ±20° (hand crank)
- Lateral tilt: ±18° (hand crank)
- Back section adjustment: +55° / -14° (air spring under head plate)
- Head board adjustment: +60° / -90°
- Leg board adjustment: -90°
- Kidney elevator (built-in): 0-120 mm (hand crank)
- Longitudinal movement: 300 mm (hand crank)
- Guide rails at both ends to accommodate accessories
- Standard accessories included: shoulder supports, waist supports, arm supports, leg supports, anesthetic screen frame, leg plates, mattress
