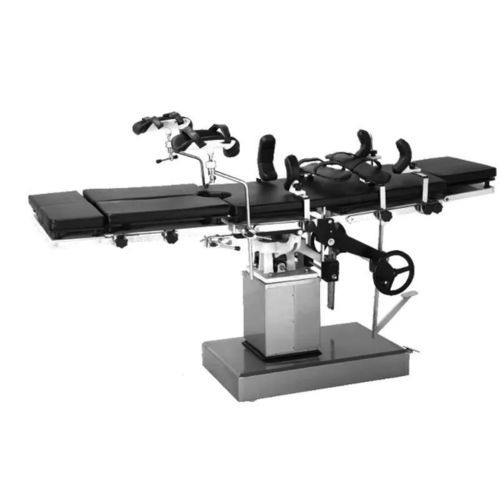

Urology operating table FY-503-2(II)
orthopedicgynecologicalcardiology

Urology operating table - FY-503-2(II) - Jiangsu Fuyou Medical - orthopedic / gynecological / cardiology
Urology operating table - FY-503-2(II) - Jiangsu Fuyou Medical - orthopedic / gynecological / cardiology
Add to favorites
Compare this product
Go to the Jiangsu Fuyou Medical website for more information

Characteristics

Applications
gynecological, orthopedic, urology, cardiology
Operation
hydraulic
Features
adjustable height, tilting, radiolucent
Material
stainless steel
Total length

200 cm
(78.7 in)

Total width

48 cm
(18.9 in)

Description

Features:
  • Intended for general surgery, cardiac, renal, orthopedics, gynecology and urology.
  • Manual hydraulic operating table with foot-pedal height adjustment.
  • Table panel frame spray-coated; column and base made of #304 stainless steel.
  • Guide rails at both ends to mount accessories.
  • Back plate adjustment via handwheel located under the back plate.
  • Lateral tilt and Trendelenburg adjustments via hand crank at the table side.
  • Kidney bridge elevation adjustable by hand crank at the table side.
  • Double-layer panel with removable cassette for X-ray examinations.
  • All sections fitted with detachable mattress for easy cleaning.


Specifications:
  • Dimensions: 2000×480 mm
  • Height adjustment: 800–1050 mm
  • Trendelenburg: ±25°
  • Lateral tilt: ±18°
  • Back section: +80° / -18°
  • Head board: +45° / -90°
  • Leg board: -90°
  • Built-in kidney elevator: 0–120 mm


Configuration:
  • Shoulder supports: 2 pcs
  • Waist supports: 2 pcs
  • Arm supports: 2 pcs
  • Leg supports: 2 pcs
  • Anesthetic screen frame: 1 pc
  • Foot plate: 2 pcs
  • Mattress: 1 set


Technical details:
  • Model: FY-503-2(II)
  • Intended use: General surgery, cardiac, renal, orthopedics, gynecology, urology
  • Operation: Manual hydraulic (foot-pedal height adjustment)
  • Table panel frame: Spray-coated
  • Column & base material: #304 stainless steel
  • Accessory rails: Guide rails at both ends
  • Back plate adjustment: Handwheel under back plate
  • Lateral tilt & Trendelenburg adjustment: Hand crank at side
  • Kidney bridge adjustment: Hand crank at side
  • Panel type: Double-layer panel with cassette for X-ray
  • Mattress: Detachable sections for cleaning
  • Dimensions: 2000×480 mm
  • Height adjustment range: 800–1050 mm
  • Trendelenburg angle: ±25°
  • Lateral tilt angle: ±18°
  • Back section range: +80° / -18°
  • Head board range: +45° / -90°
  • Leg board range: -90°
  • Built-in kidney elevator: 0–120 mm
